9497-HUC-FE10KM4K is a fiber-based HDMI 2.0b extender that delivers lossless 4K60 video up to 10KM using single-mode fiber. It supports HDR10+, Dolby Vision, and full 7.1-channel audio formats, ensuring AV fidelity across long distances. This extender features HDMI loop-out, stereo audio output, and USB keyboard/mouse passthrough, plus bi-directional IR and RS-232 communication for full control at either end. EDID can be set via DIP switch, with 16 pre-defined profiles. Its compact, industrial-grade design makes it ideal for mission-critical AV, command centers, digital signage, and secure media transport.

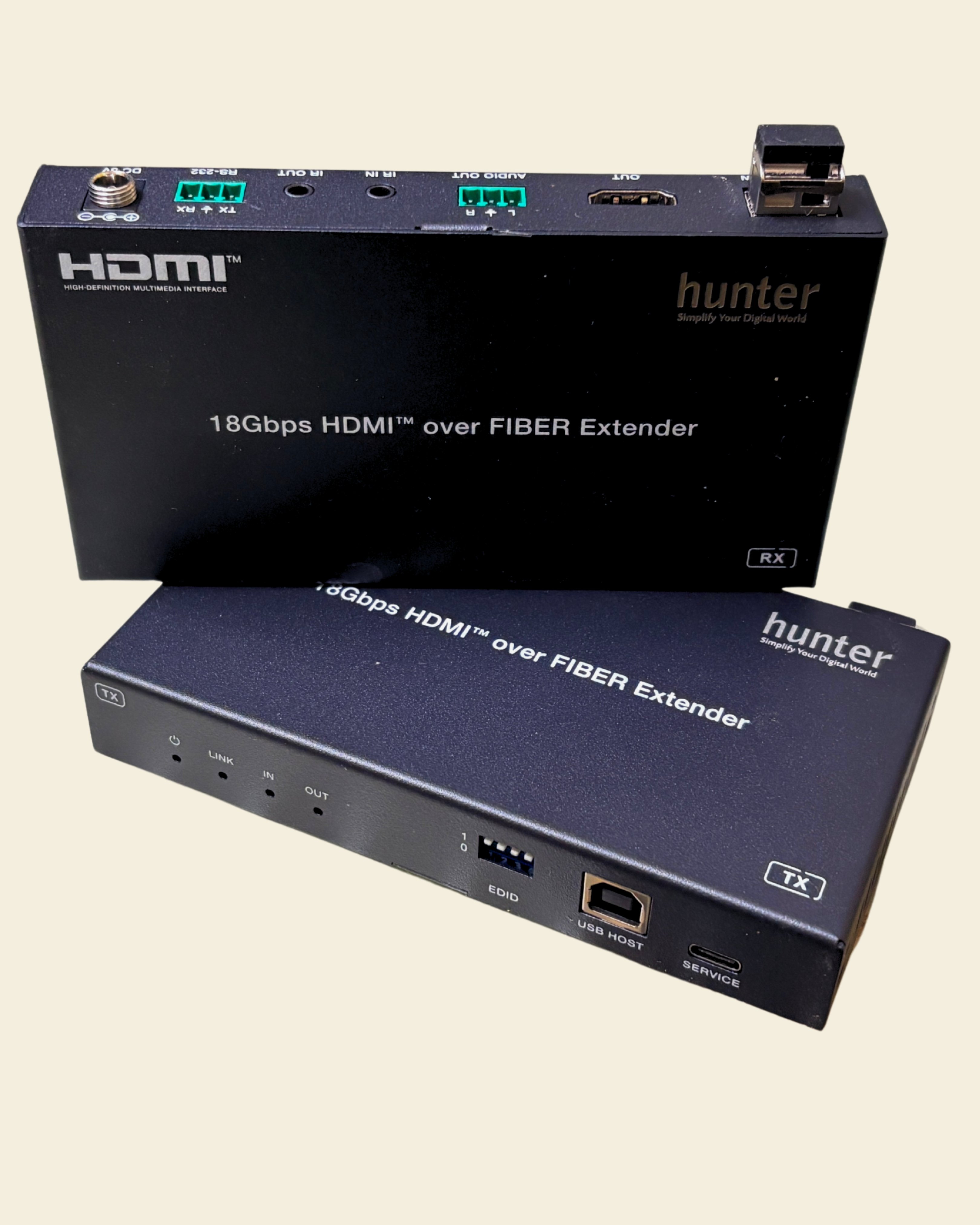

The Hunter 9497 HDMI over Fiber Extender enables uncompressed 4K60Hz 4:4:4 HDMI transmission up to 10 kilometers over single-mode fiber. Designed for critical AV deployments, this extender pair includes bi-directional IR and RS-232 pass-through, USB 1.1 keyboard/mouse support, and advanced EDID management. The transmitter includes HDMI loop-out, while the receiver supports analog audio de-embedding, making this the ideal solution for broadcast environments, digital signage, control rooms, and secure fiber-based video transmission setups.
With full compliance to HDMI 2.0b and HDCP 2.2, plus HDR10+, Dolby Vision, and multi-channel audio formats, the 9497-HUC-FE10KM4K delivers lossless, high-bandwidth video and audio performance across long fiber runs.
🎥 Up to 10KM HDMI Over Single-Mode Fiber
Transmits 4K@60Hz (4:4:4) video up to 10,000 meters using LC fiber optic cable.
🔁 HDMI Loop-Out on Transmitter
Connect a local monitor for real-time preview at the source location.
🎧 Analog Audio De-Embedding on Receiver
Stereo audio output available via 3-pin Phoenix connector.
🧠 EDID Management via DIP Switch
16 pre-configured modes including 4K HDR, 1080P HDR/SDR, and user-defined EDID.
🖱️ USB 1.1 Keyboard & Mouse Extension
Use standard input devices across the link with plug-and-play ease.
🔄 Bi-Directional IR & RS-232 Pass-Through
Control remote devices from either end of the fiber run.
📦 Compact & Rugged Design
Small form factor with metal housing, suitable for tight spaces and rack integration.
| Parameter | Specification |
|---|---|
| Model Code | 9497 |
| Part Number | HUC-FE10KM4K |
| Transmission Distance | Up to 10KM (Single-Mode), 300M (Multi-Mode OM4) |
| Video Resolution | Up to 4096×2160 @ 60Hz (4:4:4), HDR10+, Dolby Vision, HLG |
| Bandwidth | 18Gbps (HDMI 2.0b), HDCP 2.2 Compliant |
| Color Depth | 8 / 10 / 12-bit |
| Audio Formats | LPCM 2/5.1/7.1CH, Dolby TrueHD, DTS-HD MA, DSD, Dolby Digital+ |
| USB Support | USB 1.1 Keyboard/Mouse (2 ports on RX) |
| IR & RS-232 | Bi-Directional IR (20k–60kHz), RS-232 (3-pin Phoenix) |
| Audio Output | 3-pin Phoenix Stereo Output (Receiver Only) |
| Loop Output | HDMI Output (Transmitter Only) |
| Power Supply | DC 5V/2A (AC 100-240V Input) |
| Dimensions | 144mm x 78mm x 23mm (per unit) |
| Weight | TX: 337g / RX: 330g |
