9508-HUS-FE20KM4K60 is a professional 4K HDMI Fiber Extender that transmits HDMI signals up to 20KM over a single-mode fiber optic cable using a bidirectional LC interface. Supporting 4K@60Hz 4:4:4, HDR10, HDR10+, Dolby Vision, and HLG, it delivers lossless video performance for long-distance AV applications. The system includes HDMI loop-out, KVM support, IR pass-through, RS232 transparent transmission, and 3.5mm stereo audio extension. EDID dial settings and 4K to 1080P downscaling enhance compatibility across different display environments. Its plug-and-play hardware design makes it suitable for security monitoring, video conferencing, inter-building AV distribution, and large-screen display systems.
Product Code: 9508
Model: 9508-HUS-FE20KM4K60

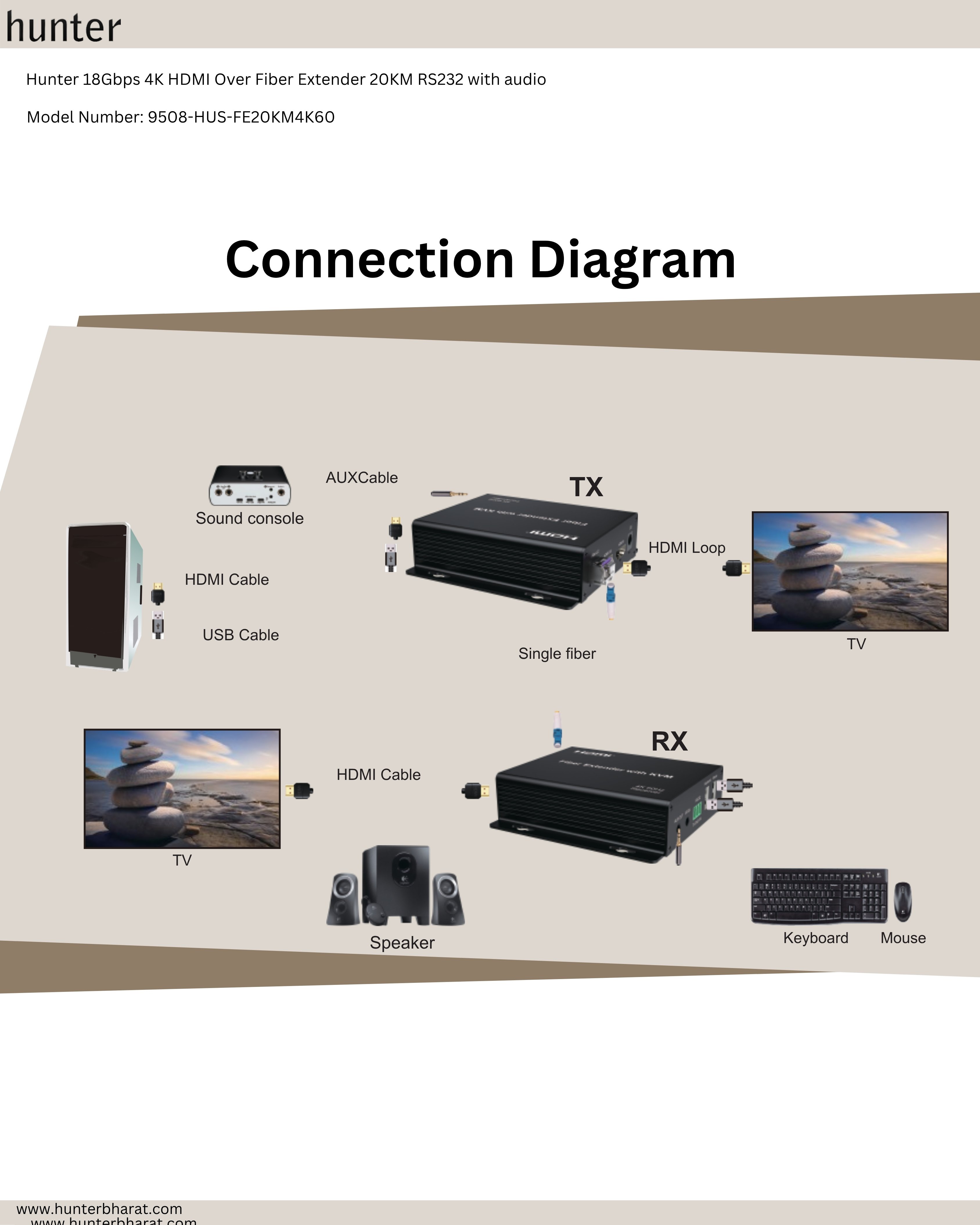

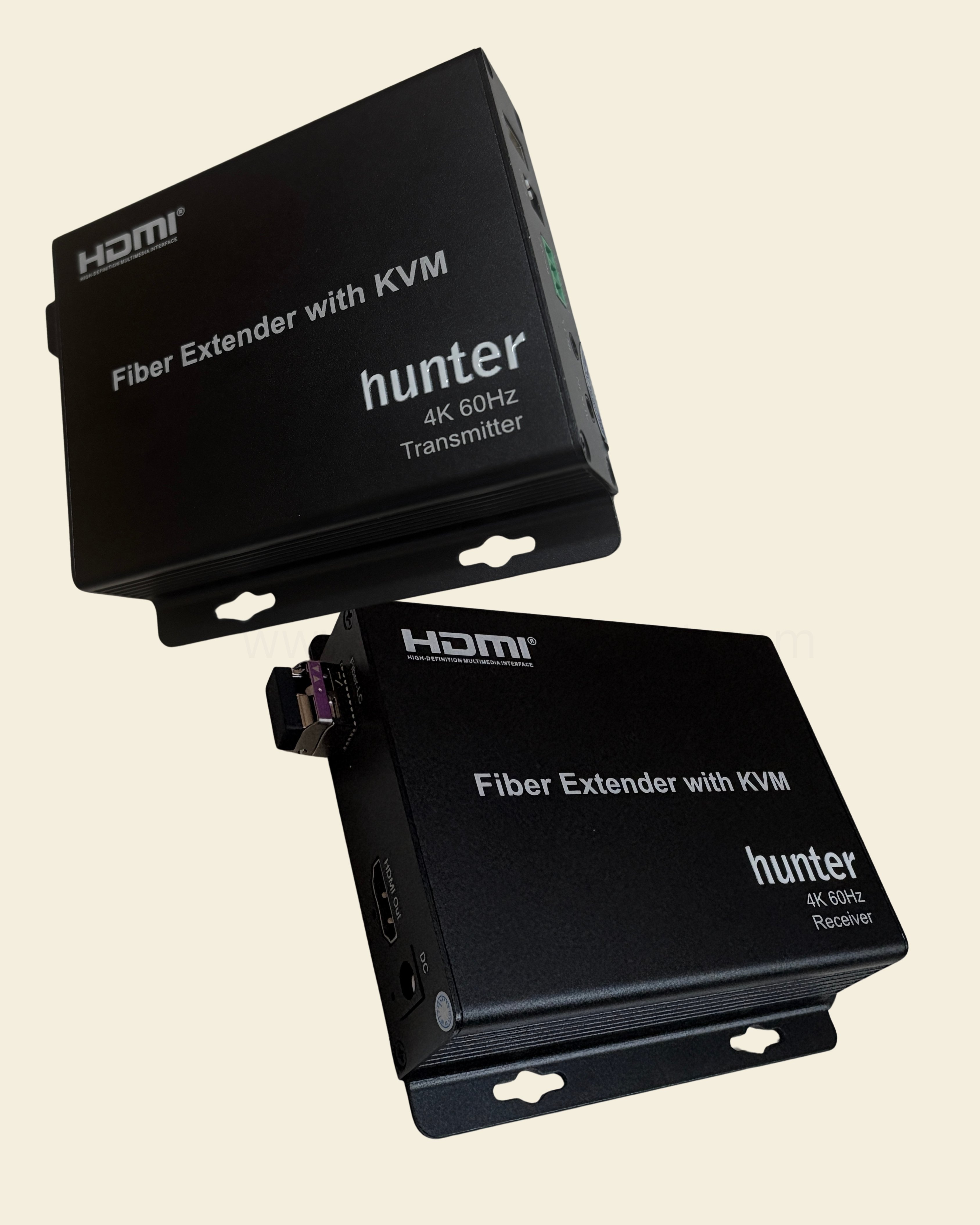

The Hunter 9508-HUS-FE20KM4K60 is a professional HDMI Fiber Extender designed to transmit 4K@60Hz 4:4:4 HDR HDMI signals up to 20KM over a single-mode fiber optic cable using standard SFP+ optical modules. The system supports HDMI loop-out, KVM functionality, IR control, RS232 transparent transmission, and 3.5mm stereo audio extension, making it ideal for security monitoring, inter-building AV distribution, command centers, video conferencing, and large-format display installations. The extender utilizes a single-fiber bidirectional LC interface, reducing fiber infrastructure requirements while ensuring stable, lossless signal transmission.

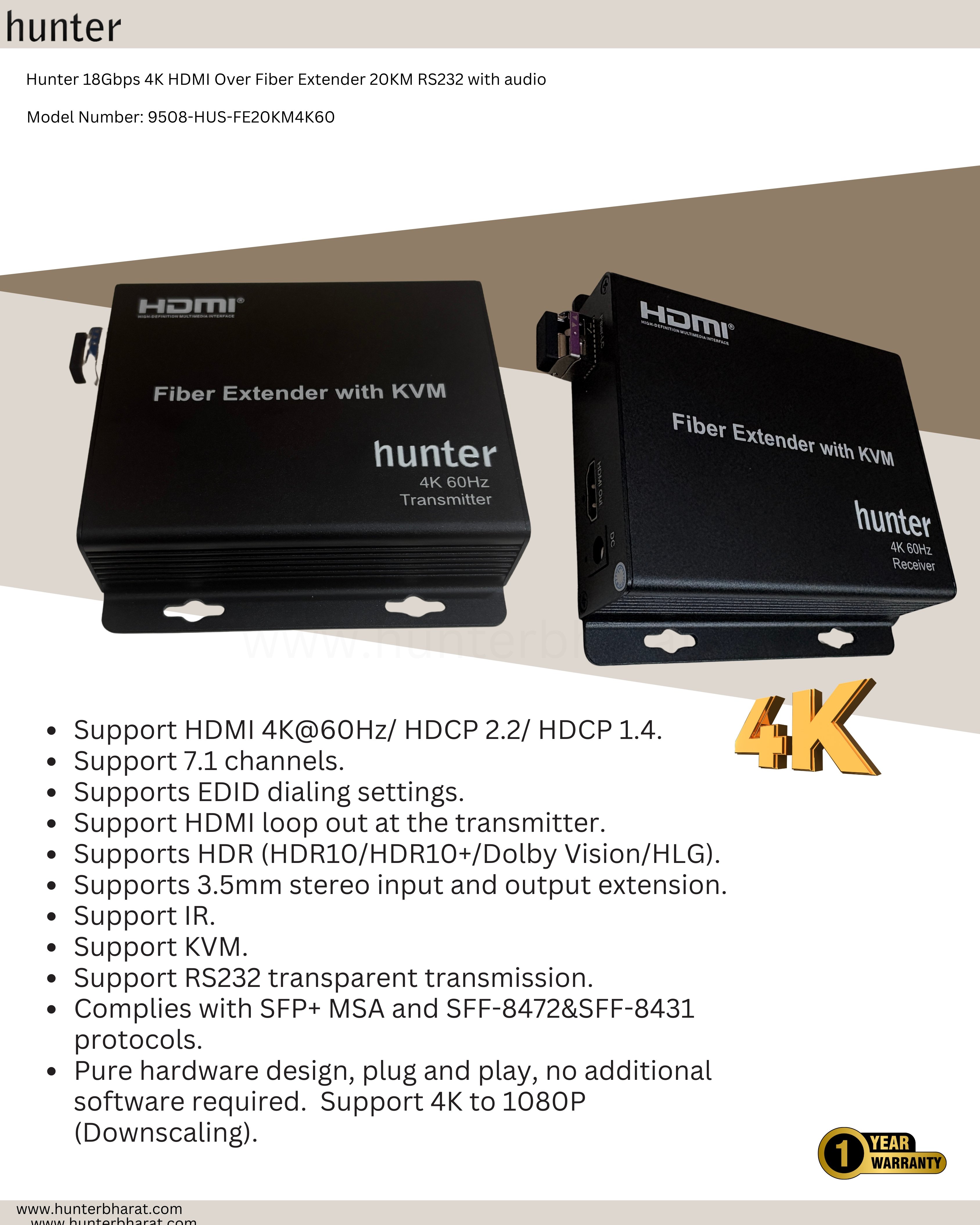

Supports HDMI signal extension up to 20 kilometers over single-mode fiber with support for 4K@60Hz 4:4:4 video.
Supports:
for enhanced image quality and dynamic range.
Provides local HDMI monitoring at the transmitter side through a dedicated HDMI output.

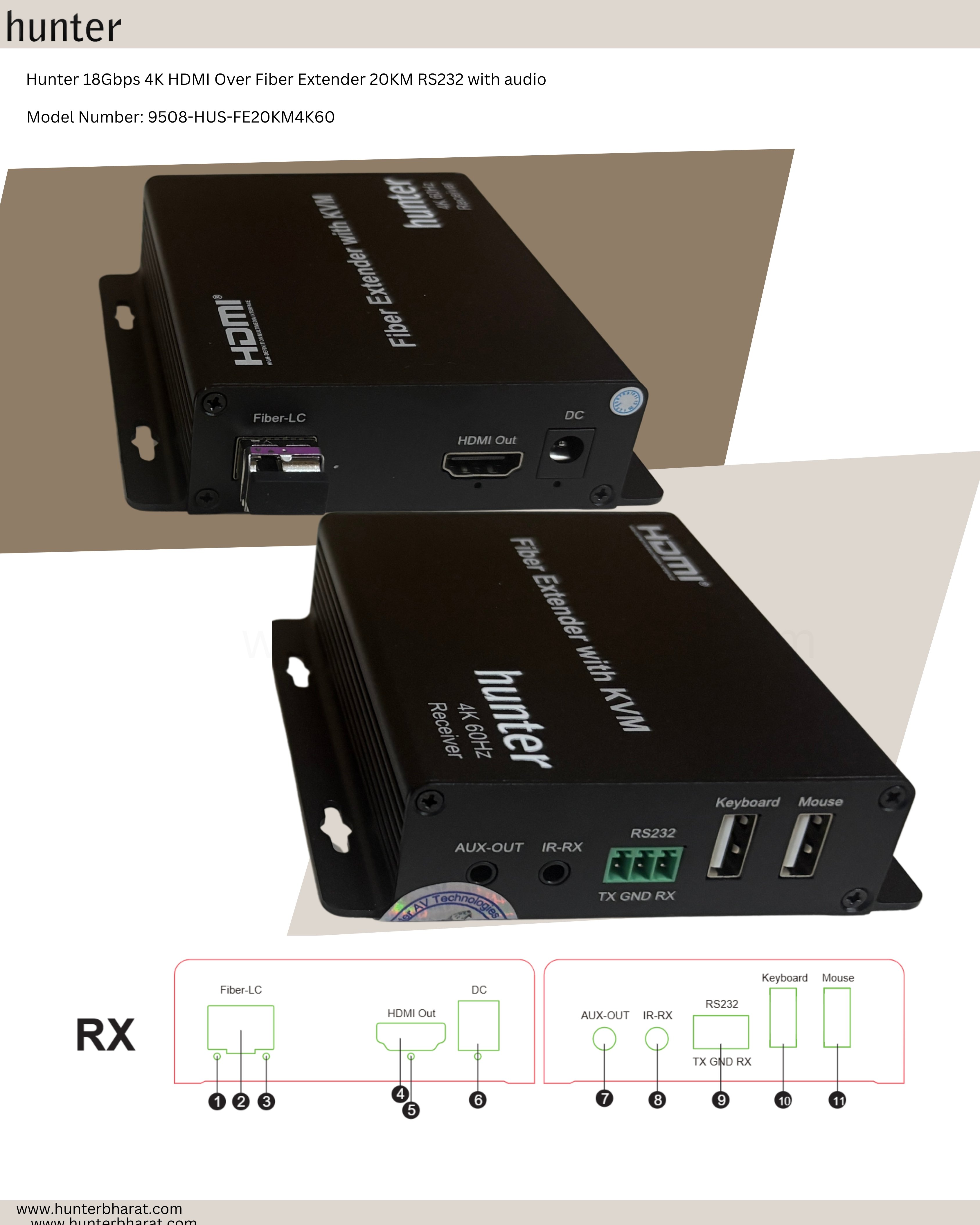

Supports keyboard and mouse control from the receiver side via dedicated USB interfaces.
Supports 3.5mm stereo audio input and output extension, allowing audio transport alongside HDMI signals.
Integrated IR transmitter and receiver support remote device control.
Supports RS232 serial communication for control system integration and remote equipment management.

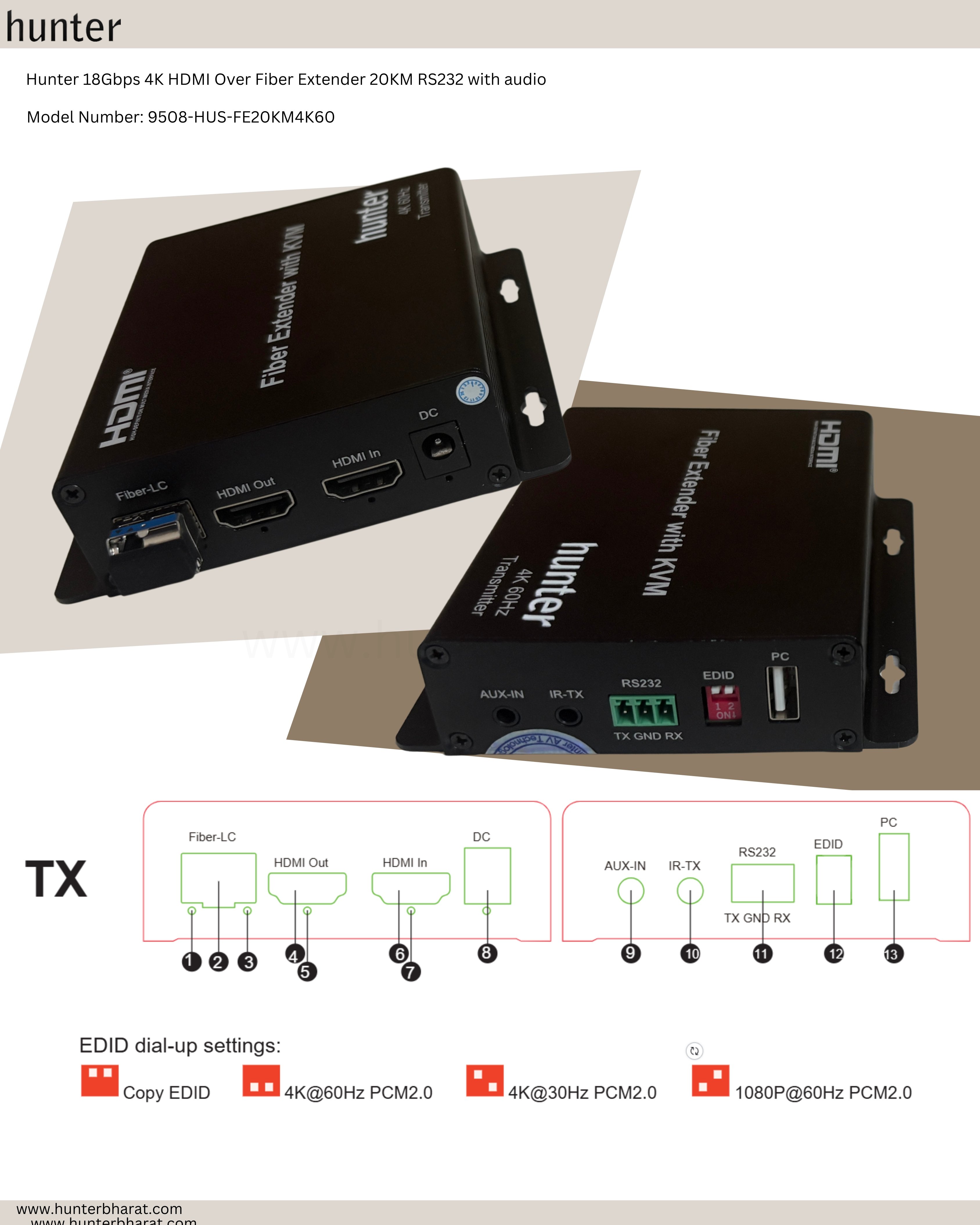

Features selectable EDID modes including:
Supports downscaling from 4K sources to 1080P displays.
Plug-and-play operation with no software or drivers required.
| Parameter | Specification |
|---|---|
| Product Code | 9508 |
| Model | HUS-FE20KM4K60 |
| Transmission Medium | Single-Mode Fiber |
| Fiber Interface | Single Fiber LC |
| Transmission Distance | 20KM |
| Maximum Resolution | 4096 × 2160 @ 60Hz |
| HDMI Standard | HDMI 2.0 |
| HDCP Support | HDCP 2.2 / HDCP 1.4 |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | DTS-HD, Dolby TrueHD, DTS, Dolby AC3, Atmos, PCM |
| Audio Extension | 3.5mm Stereo Input & Output |
| KVM Support | Keyboard & Mouse |
| IR Support | Yes |
| RS232 Support | Transparent Transmission |
| Fiber Wavelength | 1270 / 1330nm |
| Stereo Input Level | 1.1V RMS |
| Power Consumption | TX: 1.1A/5V DC, RX: 0.7A/5V DC |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 105 × 106 × 28 mm |
| Weight | TX: 198g, RX: 194g |
