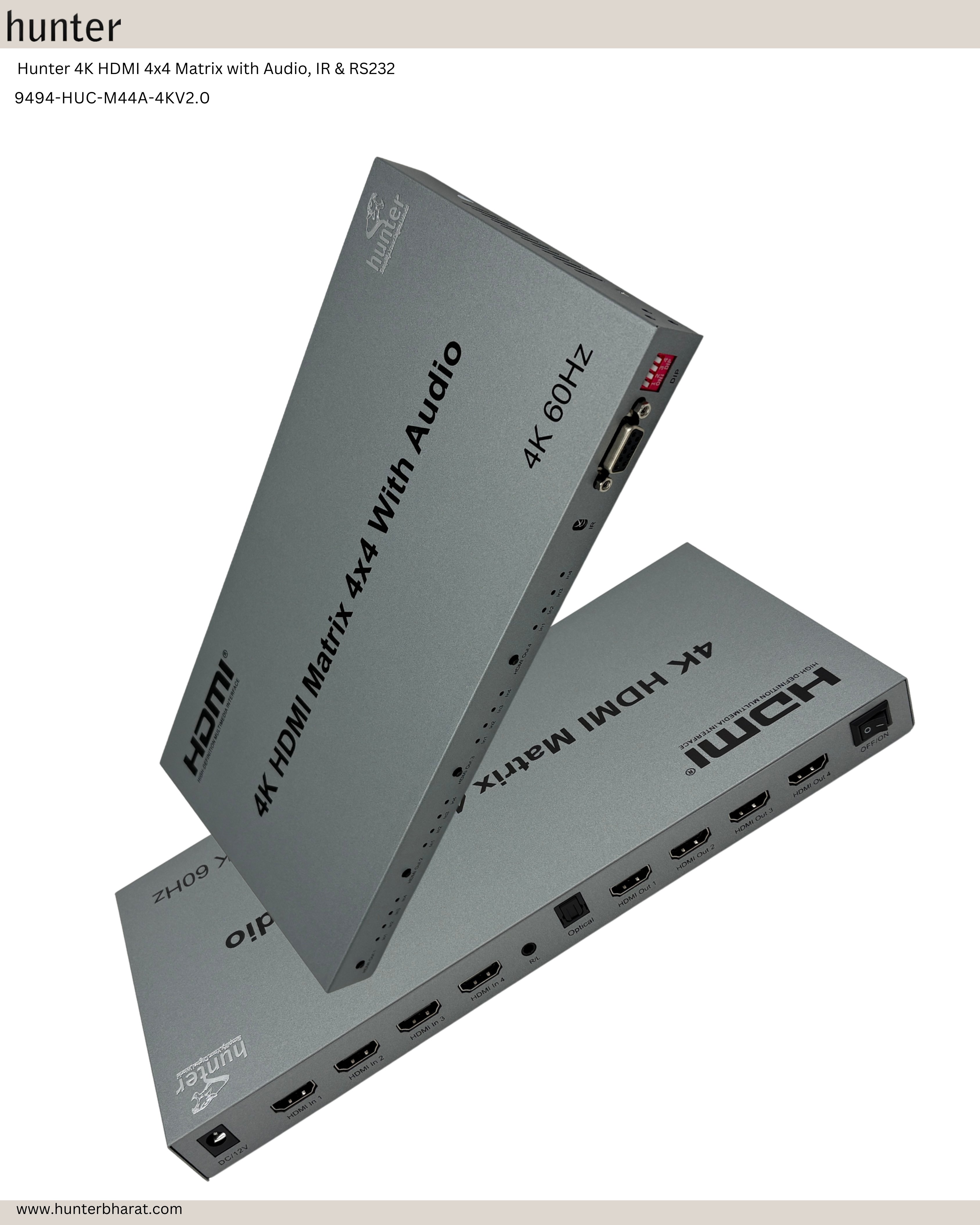

9494-HUC-M44A-4KV2.0 is a 4×4 HDMI Matrix Switcher supporting up to 4K@60Hz UHD video with simultaneous output to four screens. It allows seamless switching between 4 HDMI sources and 4 displays, and includes analog audio output via HDMI Out 1 through 3.5mm and optical ports. Built for professional AV installations, it features 9 DIP-switch EDID settings, supports 3D video, 7.1-channel audio, and includes both IR and RS232 control options. Its compact design fits into control rooms, retail displays, classrooms, and command centers with ease. Designed for high-performance signal management with lossless audio/video output, it ensures compatibility across a wide range of display types.

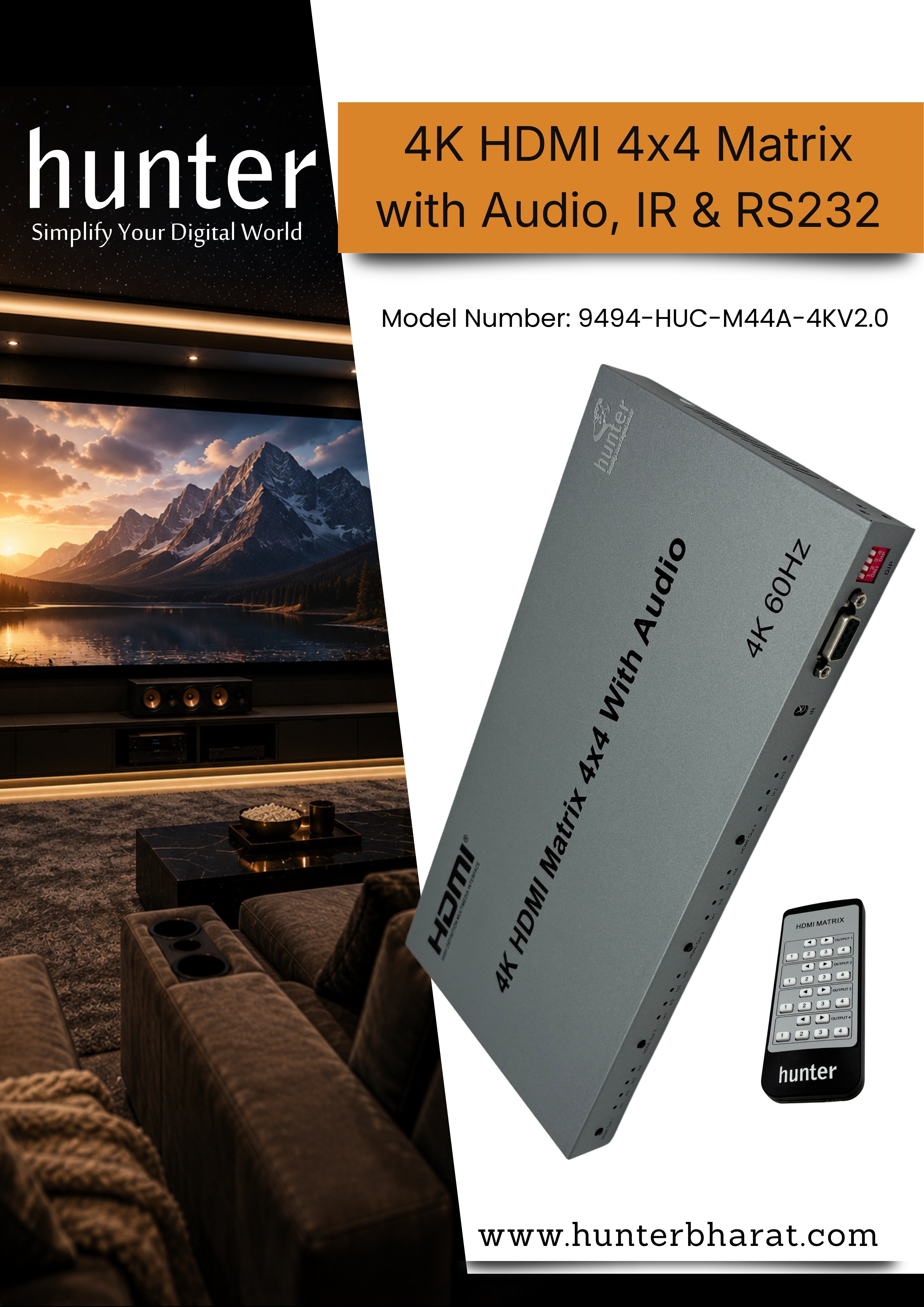

Model: 9494-HUC-M44A-4KV2.0
The Hunter HDMI Matrix 4×4 (Model: 9494-HUC-M44A-4KV2.0) enables you to connect up to 4 HDMI sources to 4 HDMI displays, offering independent switching and simultaneous display flexibility. Supporting 4K@60Hz resolution, it features optical and 3.5mm stereo audio output via HDMI Out 1, making it ideal for AV setups that require audio de-embedding. This compact yet powerful matrix includes 9 EDID settings, IR remote, and RS232 control, ensuring full compatibility with modern AV systems and professional installations.

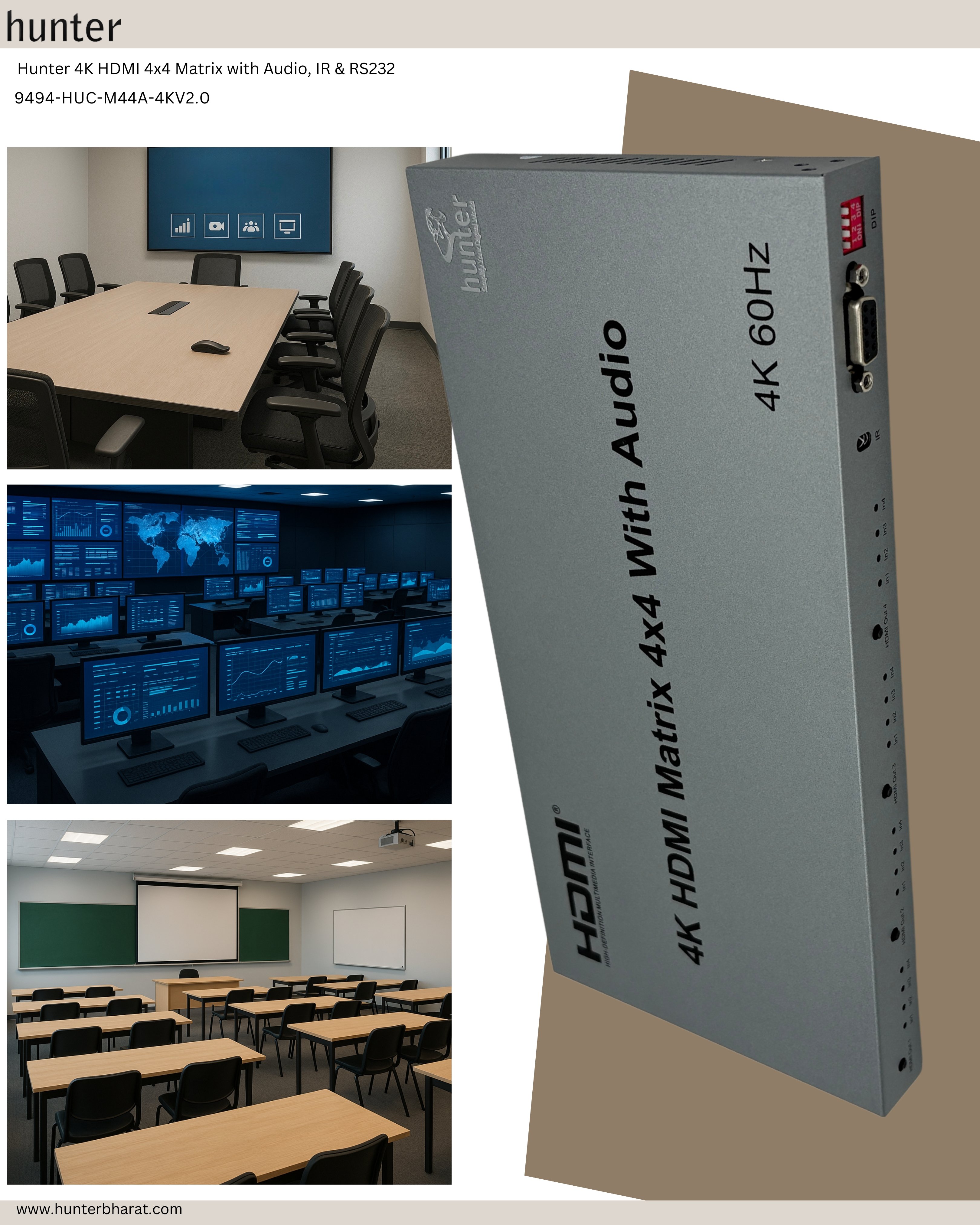

Ideal for TV showrooms, teaching environments, corporate AV, data centers, and control rooms, this matrix delivers performance, flexibility, and Hunter-grade reliability.
🔁 4×4 HDMI Matrix Switching
Route any of 4 HDMI sources to any of the 4 outputs individually or simultaneously.
🖥️ 4K UHD at 60Hz with Deep Color Support
Supports resolutions up to 4K/60Hz, 8/10/12-bit color depth, and lossless signal quality.
🎧 Analog Audio Output from HDMI Out 1
Simultaneous 3.5mm stereo headphone and optical fiber audio out for integration with external audio systems.

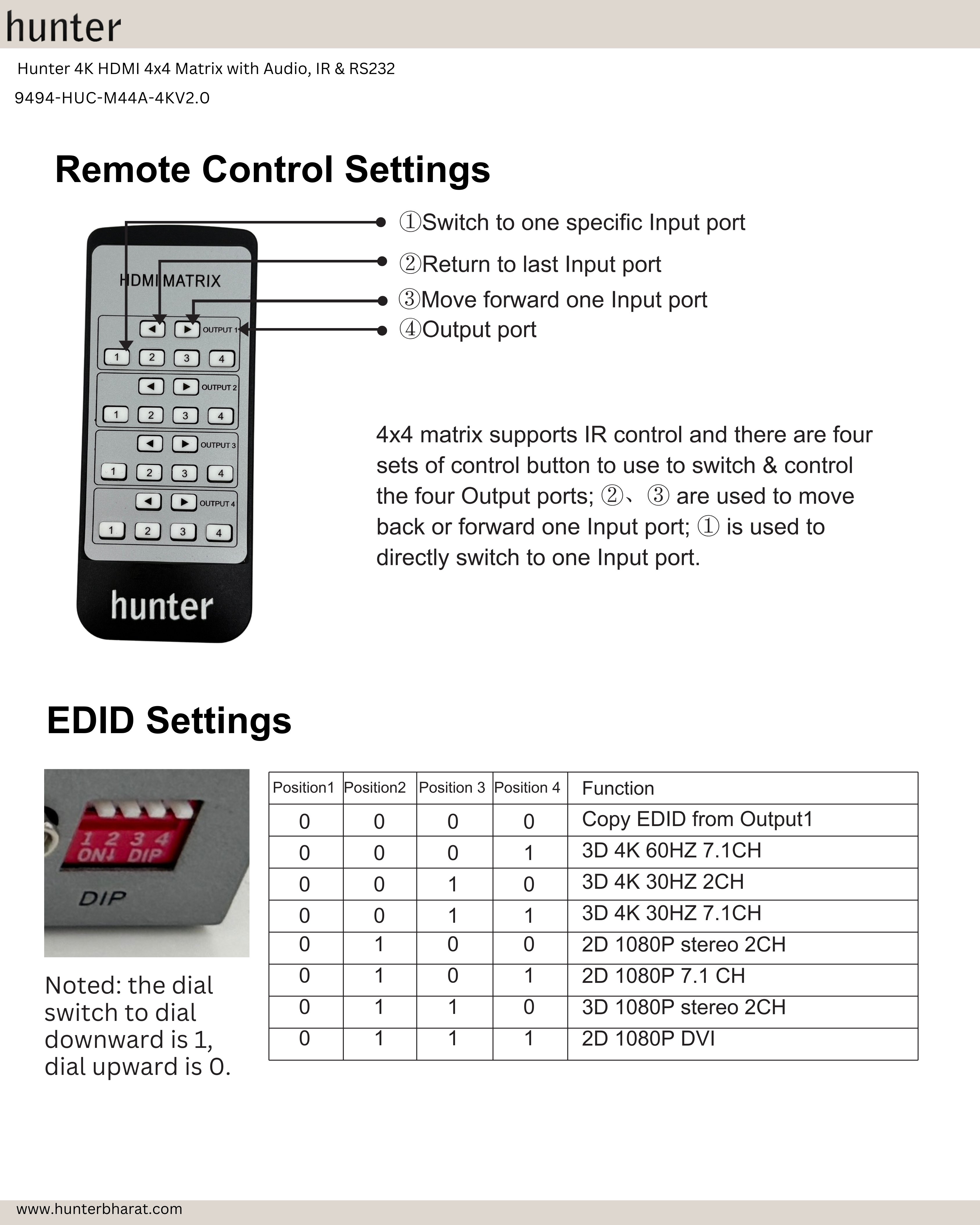

⚙️ 9 EDID Modes with DIP Switch Control
Set preferred display compatibility, including EDID copy from Output 1, 3D, 7.1CH, 2CH, DVI, and more.

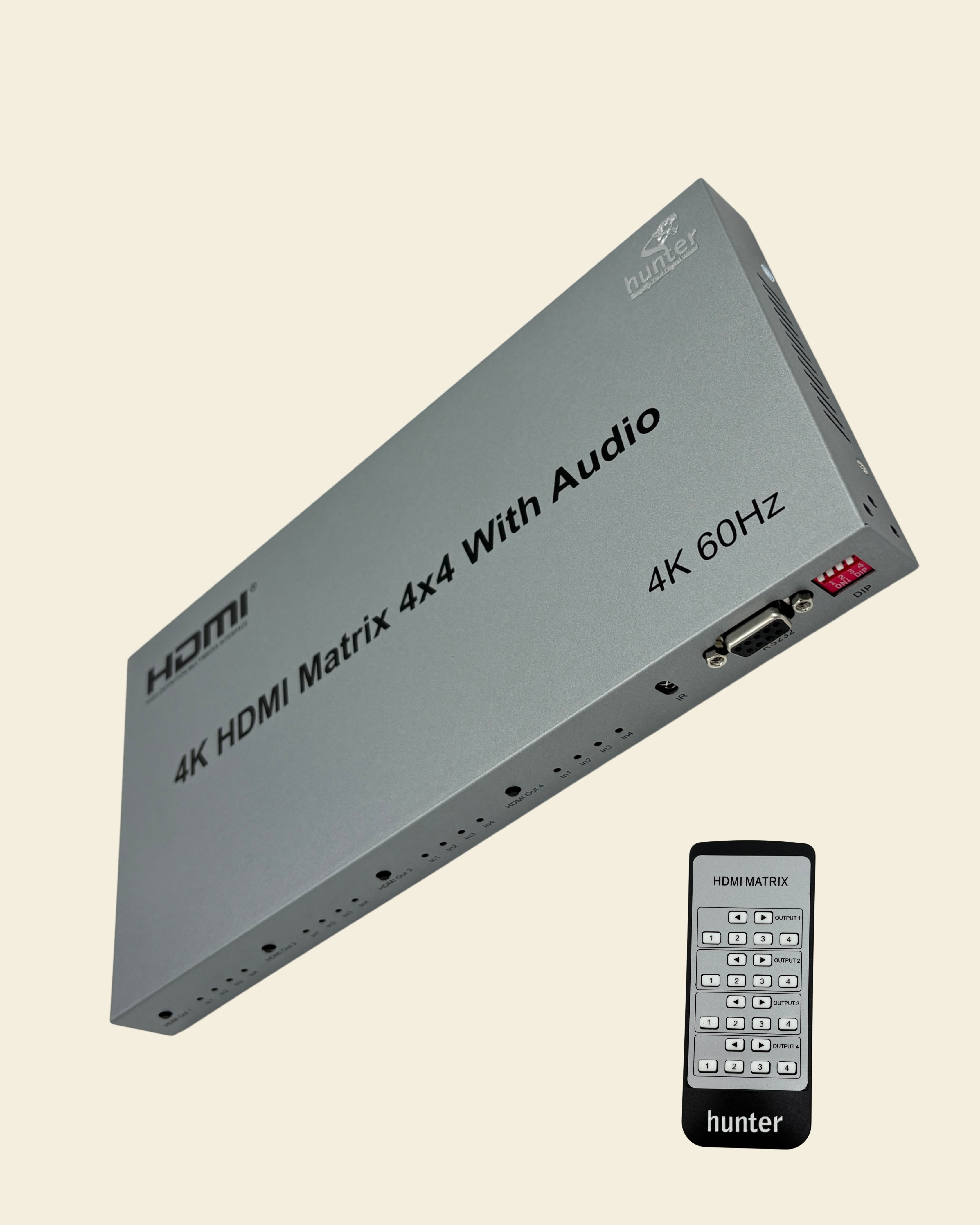

🛠️ IR & RS232 Control
Convenient switching via IR remote, or RS232 integration into control systems.
🧩 Compact, Rack-Friendly Design
Slim aluminum body with full connectivity access, making it easy to install in control rooms or AV racks.
| Attribute | Details |
|---|---|
| Model Code | 9494 |
| Part Number | HUC-M44A-4KV2.0 |
| Inputs / Outputs | 4 HDMI In / 4 HDMI Out |
| Max Resolution | 4K @ 60Hz |
| Audio Output | 3.5mm Stereo + Optical (from HDMI Out 1) |
| EDID Options | 9 Modes (via DIP Switch), including Copy from Output1 |
| Audio Formats | DTS-HD, Dolby TrueHD, LPCM7.1, AC3, DSD |
| Max Bandwidth | 18 Gbps |
| Control | IR Remote + RS232 |
| Power Input | DC 12V/1A (100–240V AC Adapter) |
| Operating Temp | -15°C to +45°C |
| Dimensions (mm) | 276 × 143 × 26 |
| Weight | 720g |
