Model: Hunter 9495-HTC-KVM120M4K is a 120-meter HDMI KVM extender that uses single Cat6 cabling to transmit both 4K HDMI video and USB keyboard/mouse signals between a source and a remote display. It supports local HDMI loop-out, IR pass-through, and L/R audio output at both ends, making it a versatile tool for AV, surveillance, and control room setups. The device includes an EDID switch button for 4K/1080P toggle and retains memory after power loss. Built with low power consumption and compact dimensions, it’s ideal for environments like command centers, teaching rooms, ticketing platforms, and multimedia workstations that require long-distance control and AV display.
Model: 9495-HTC-KVM120M4K
The Hunter 9495 HDMI KVM Extender transmits 4K HDMI video and USB keyboard/mouse signals up to 120 meters using a single Cat6 cable, replacing expensive long HDMI runs. This extender pair supports HDCP 1.4, EDID switching, local HDMI loop-out, IR control, and stereo audio output at both ends. Designed for command centers, classrooms, video surveillance, and AV control applications, it offers lossless transmission with KVM control, enabling remote operation of a host system.
Its compact build, low power consumption, and plug-and-play setup make it ideal for AV integrators needing stable long-distance HDMI + KVM solutions.
đē 4K HDMI Transmission up to 120M
Delivers 4K/1080p video up to 120 meters over a single Cat6 cable with no quality loss.
đąī¸ USB KVM Extension
Supports keyboard and mouse control from the receiver end, ideal for remote workstations.
đ Local HDMI Loop-Out on Transmitter

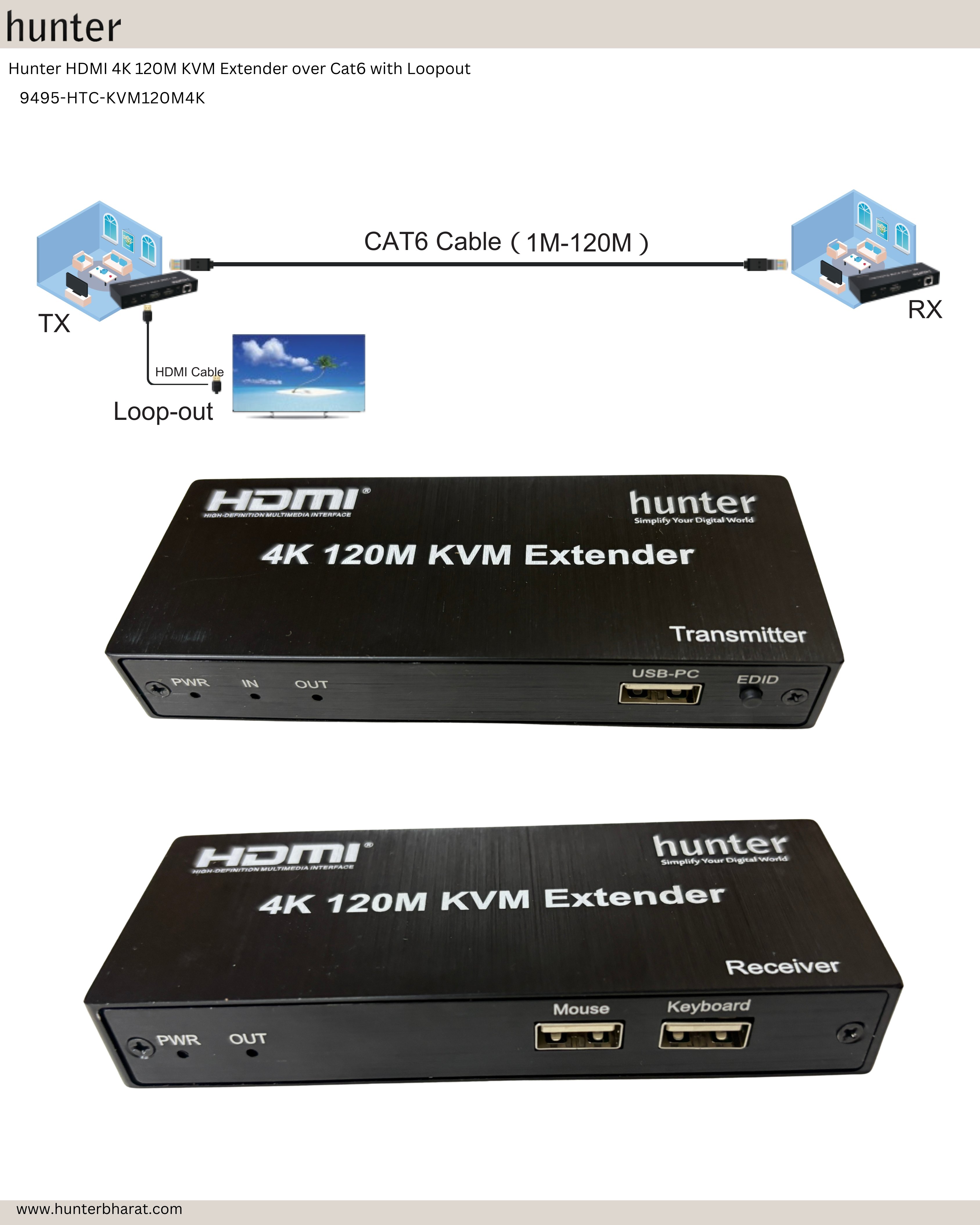

Mirror your source to a local display while transmitting to a remote one.
đ§ Stereo Audio Output on Both Ends
Includes 3.5mm L/R analog audio out on both TX and RX units.
đšī¸ IR Pass-Through Control
Bidirectional IR transmission for remote source control from the receiver side.
đ§ EDID Switching + Power-Off Memory
Switch between 4K and 1080P EDID modes using a button, with persistent memory after power loss.
đ ī¸ Low Power, Compact Design
Easy to install in control rooms, teaching setups, and AV networks.
| Attribute | Details |
|---|---|
| Model Code | 9495 |
| Part Number | HTC-KVM120M4K |
| Transmission Distance | Up to 120m via Cat6 |
| HDMI Input/Output | 4K, 1080p, 720p, 576p, 480p (TX & RX support all) |
| Loop-Out Port | HDMI (on TX) |
| USB Ports | USB-PC (TX), Mouse + Keyboard (RX) |
| Audio Output | 3.5mm stereo on both TX and RX |
| IR Control | IR-TX and IR-RX supported |
| Max Bandwidth | 340 MHz |
| Baud Rate | 3 × 3.4 Gbps |
| Power Supply | DC 5V/1A (Input AC 100V–240V) |
| Operating Temp | -15°C to +55°C |
| Dimensions | 122 × 50 × 19 mm (TX & RX) |
| Weight | TX: 108g, RX: 108g |
