9506-HUS-EFHD200M is a 200-meter HDMI IP Extender that transmits Full HD HDMI video and audio over a standard Cat5e/Cat6 network cable. Based on TCP/IP architecture, it supports point-to-point, point-to-multipoint, multipoint-to-multipoint, and cascade configurations, making it ideal for scalable AV distribution systems. Supporting HDCP 1.4, MJPEG decoding, and standard Ethernet switching infrastructure, the extender enables flexible deployment without expensive matrix hardware. Integrated IR pass-through control allows remote operation of source devices, while the plug-and-play hardware design ensures quick installation. Perfect for conference rooms, command centers, digital signage networks, multimedia classrooms, and control applications.
Product Code: 9506
Model: 9506-HUS-EFHD200M

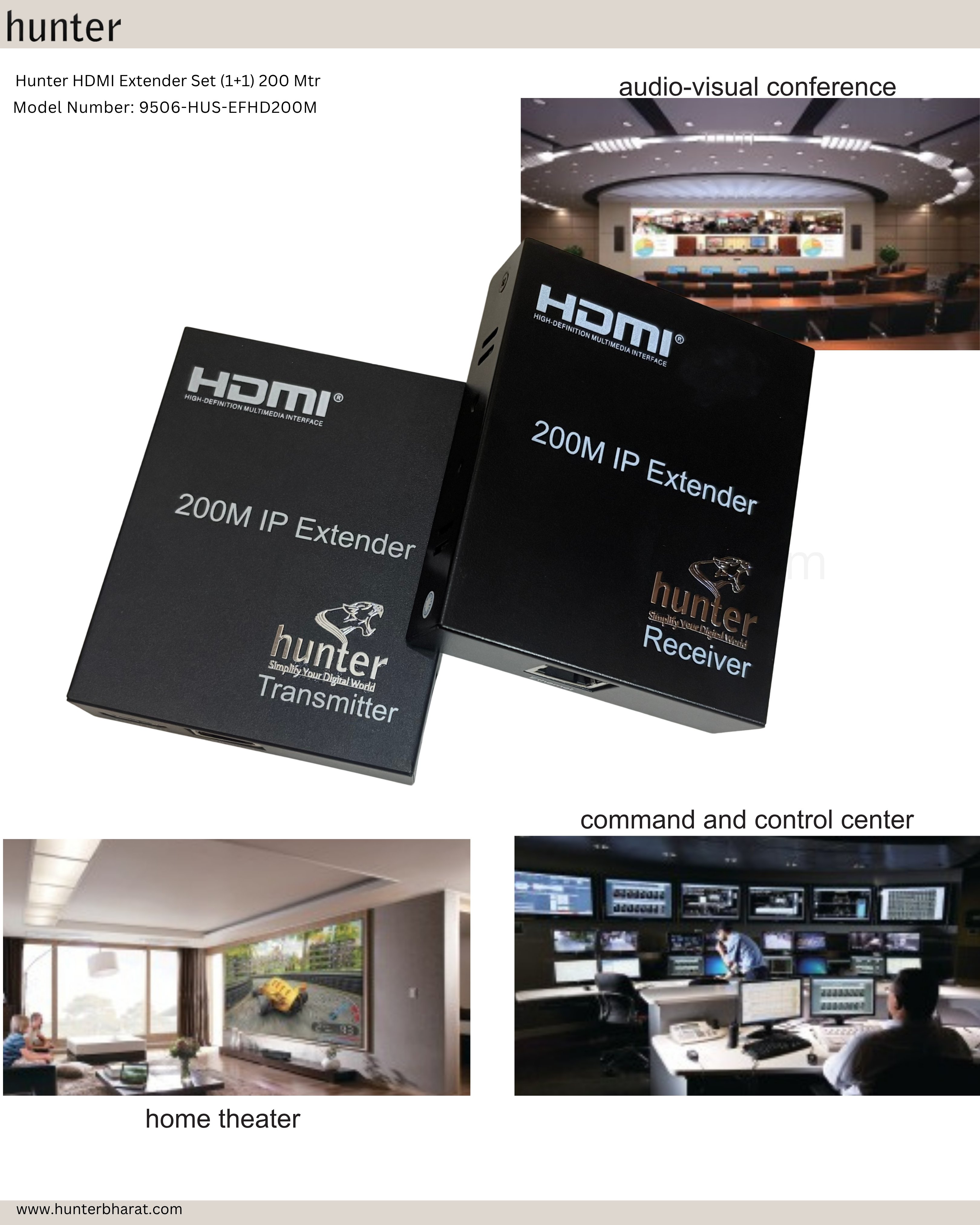

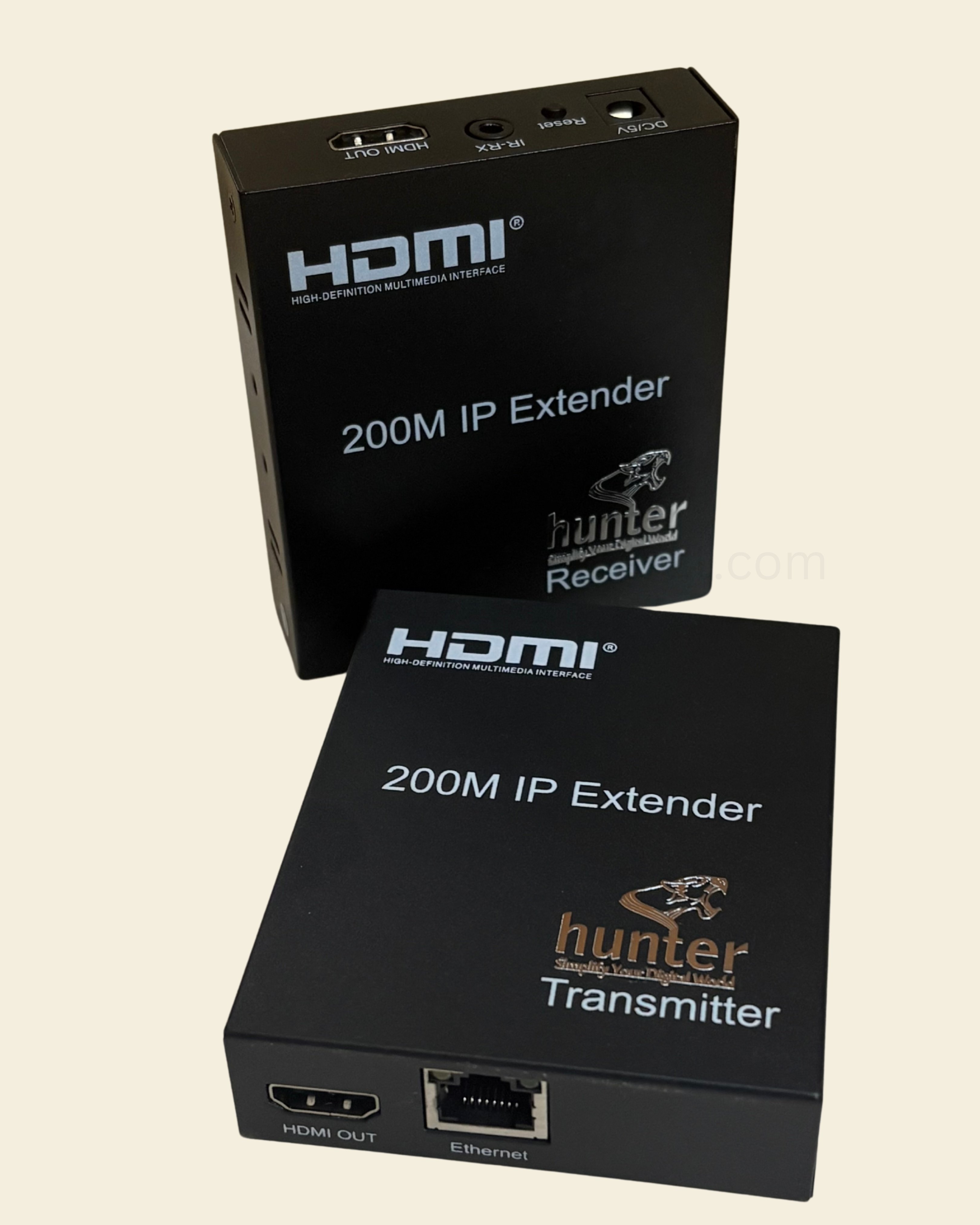

The Hunter 9506-HUS-EFHD200M HDMI IP Extender is a professional HDMI-over-IP solution designed to transmit 1080P HDMI video and audio up to 200 meters over a single Cat5e/Cat6 cable. Based on the TCP/IP networking standard, it supports flexible deployment modes including point-to-point, point-to-multipoint, multipoint-to-multipoint, and cascade network configurations, making it ideal for digital signage, control rooms, conference facilities, classrooms, and large-scale AV distribution systems.
Using standard Ethernet infrastructure and switches, the system allows HDMI content to be distributed across multiple displays without dedicated matrix hardware. The extender supports HDCP 1.4, IR pass-through control, and plug-and-play operation for quick deployment.

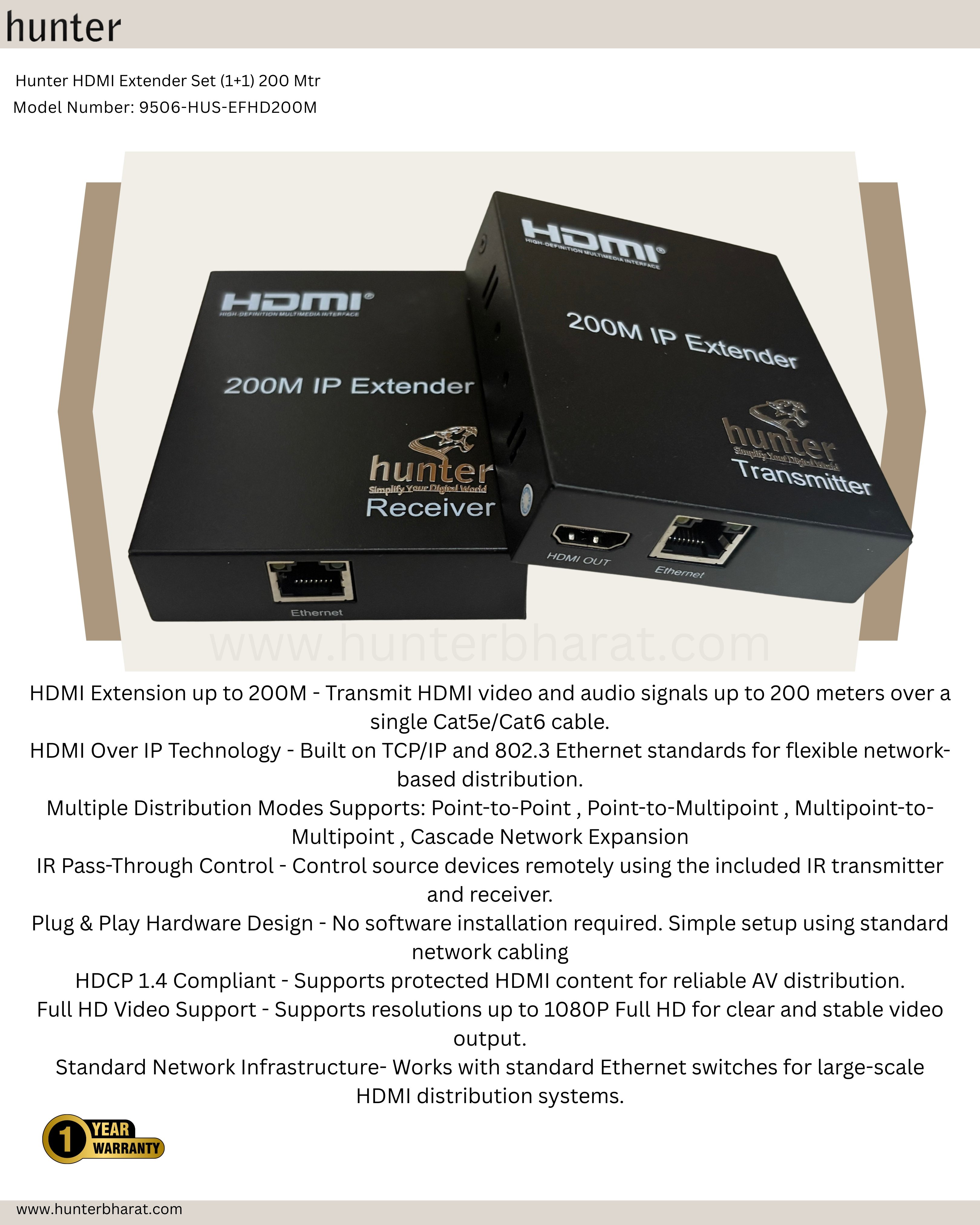

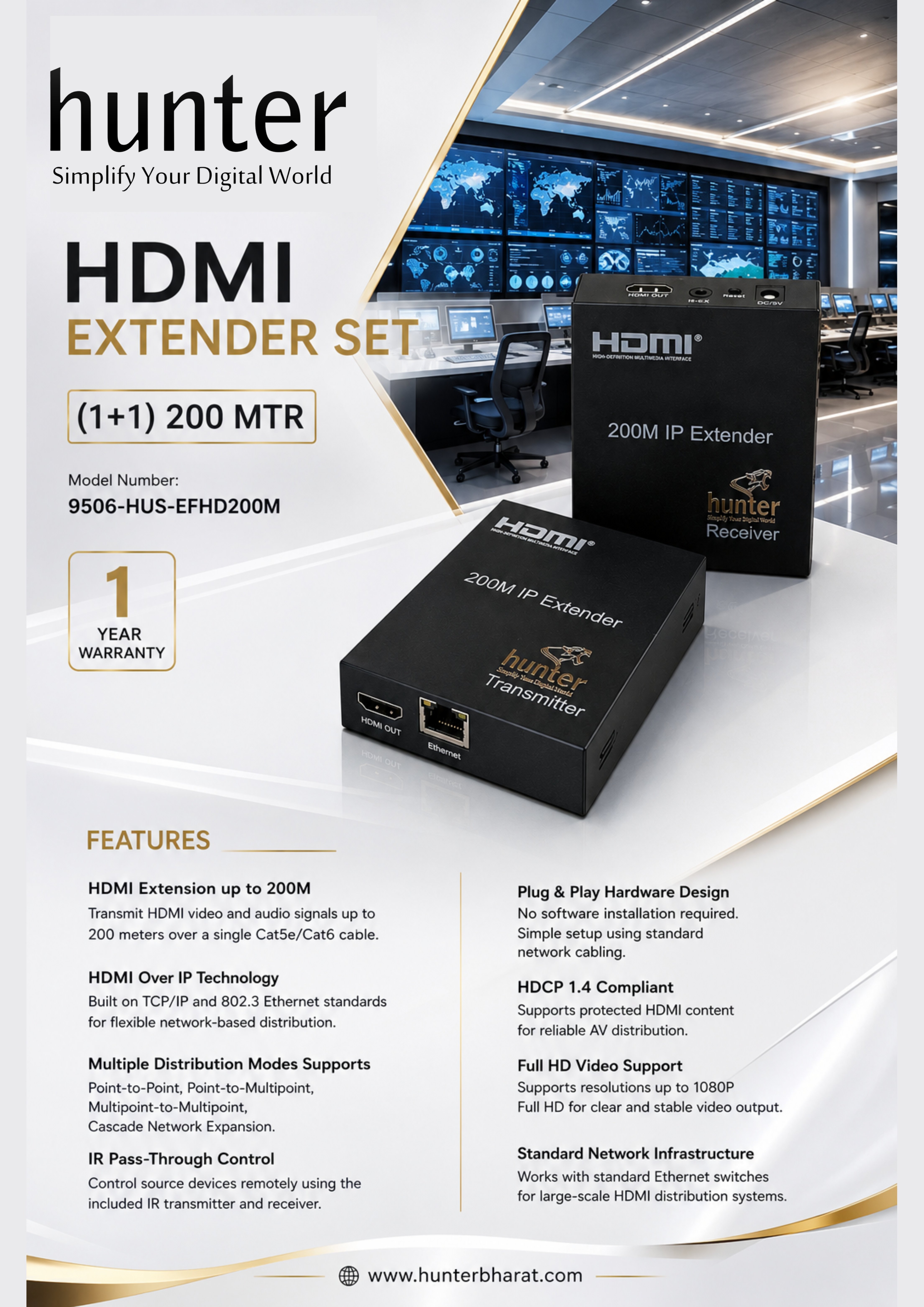

Transmit HDMI video and audio signals up to 200 meters over a single Cat5e/Cat6 cable.
Built on TCP/IP and 802.3 Ethernet standards for flexible network-based distribution.
Supports:

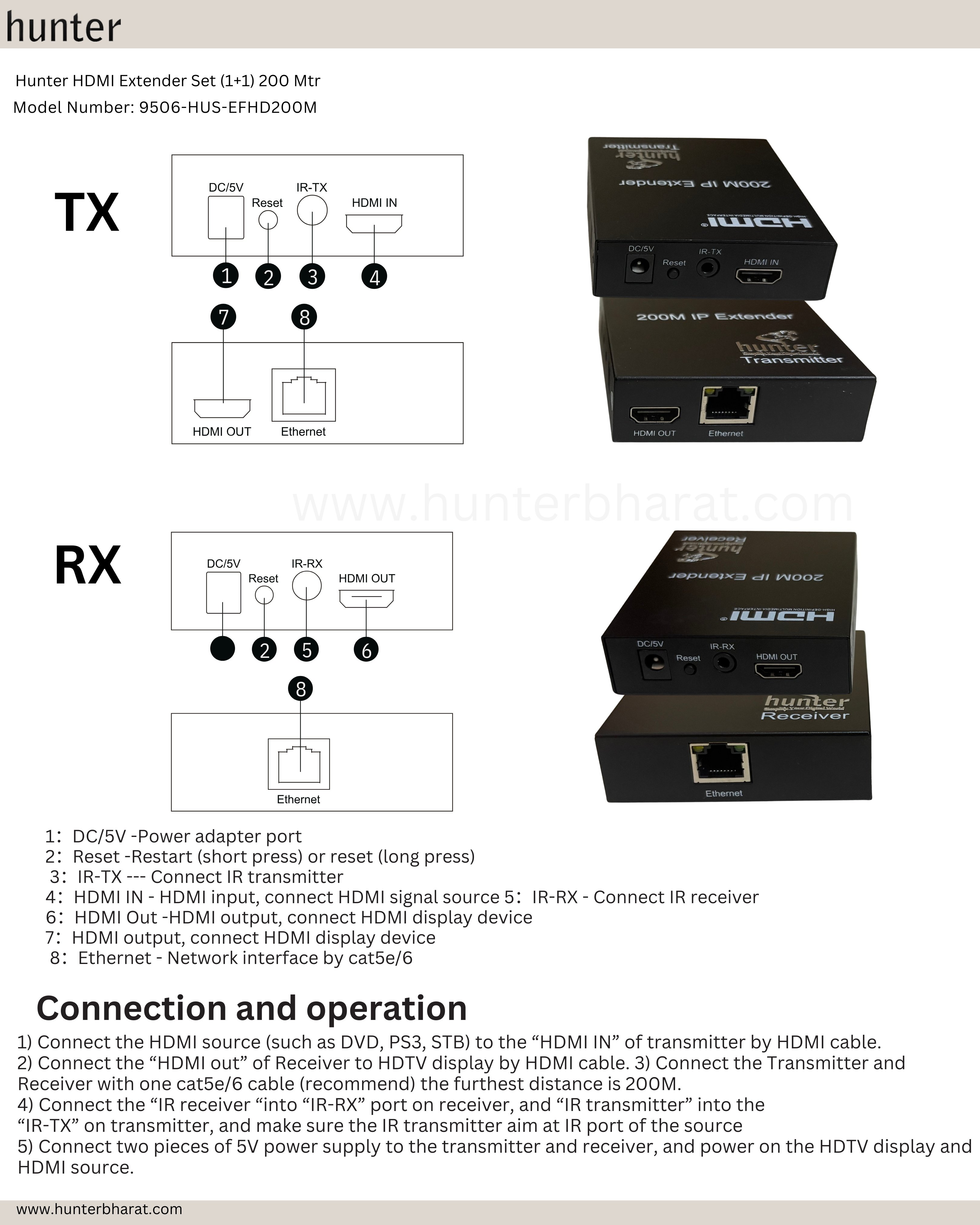

Control source devices remotely using the included IR transmitter and receiver.
No software installation required. Simple setup using standard network cabling.
Supports protected HDMI content for reliable AV distribution.
Supports resolutions up to 1080P Full HD for clear and stable video output.
Works with standard Ethernet switches for large-scale HDMI distribution systems.

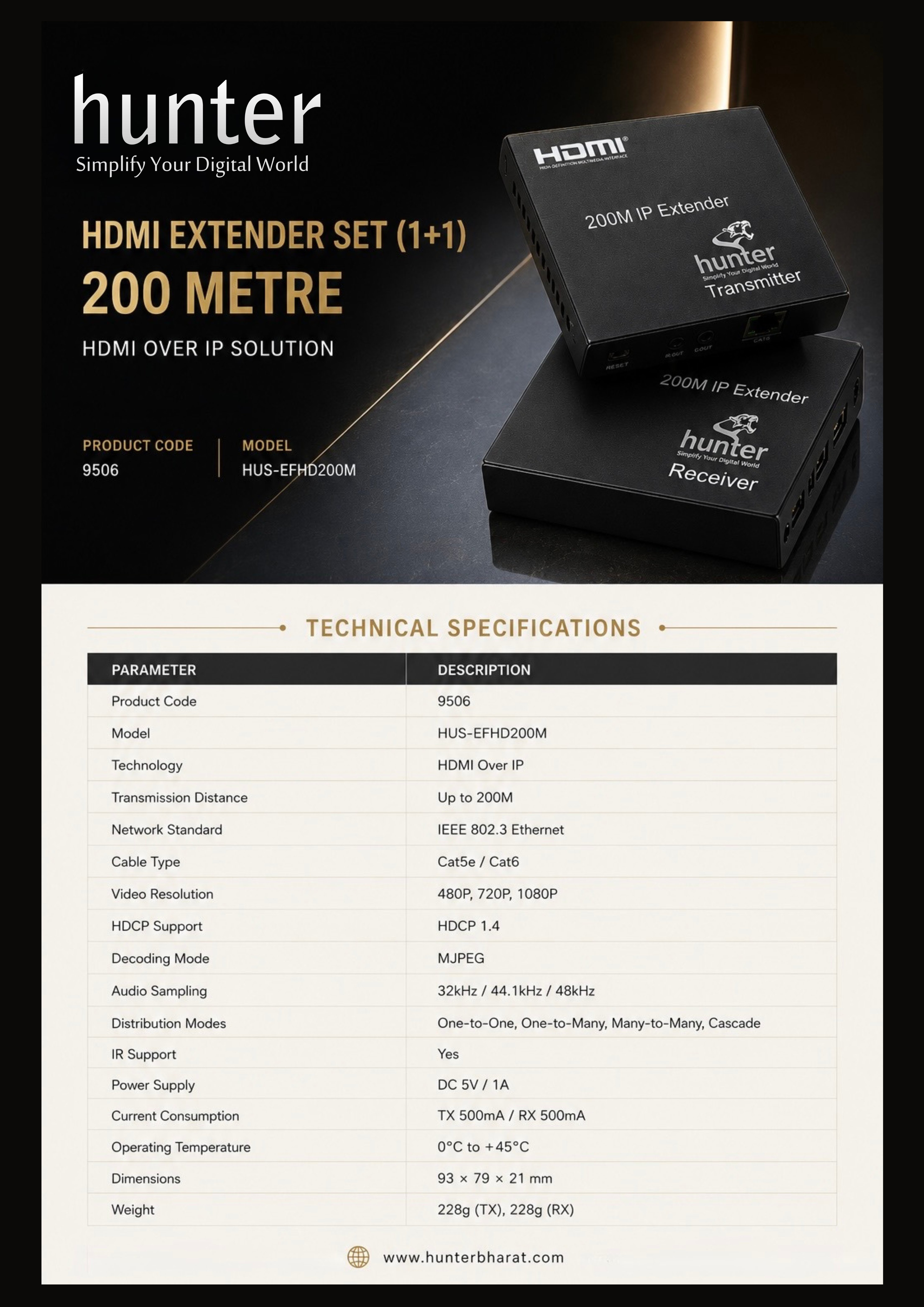

| Parameter | Specification |
|---|---|
| Product Code | 9506 |
| Model | HUS-EFHD200M |
| Technology | HDMI Over IP |
| Transmission Distance | Up to 200M |
| Network Standard | IEEE 802.3 Ethernet |
| Cable Type | Cat5e / Cat6 |
| Video Resolution | 480P, 720P, 1080P |
| HDCP Support | HDCP 1.4 |
| Decoding Mode | MJPEG |
| Audio Sampling | 32kHz / 44.1kHz / 48kHz |

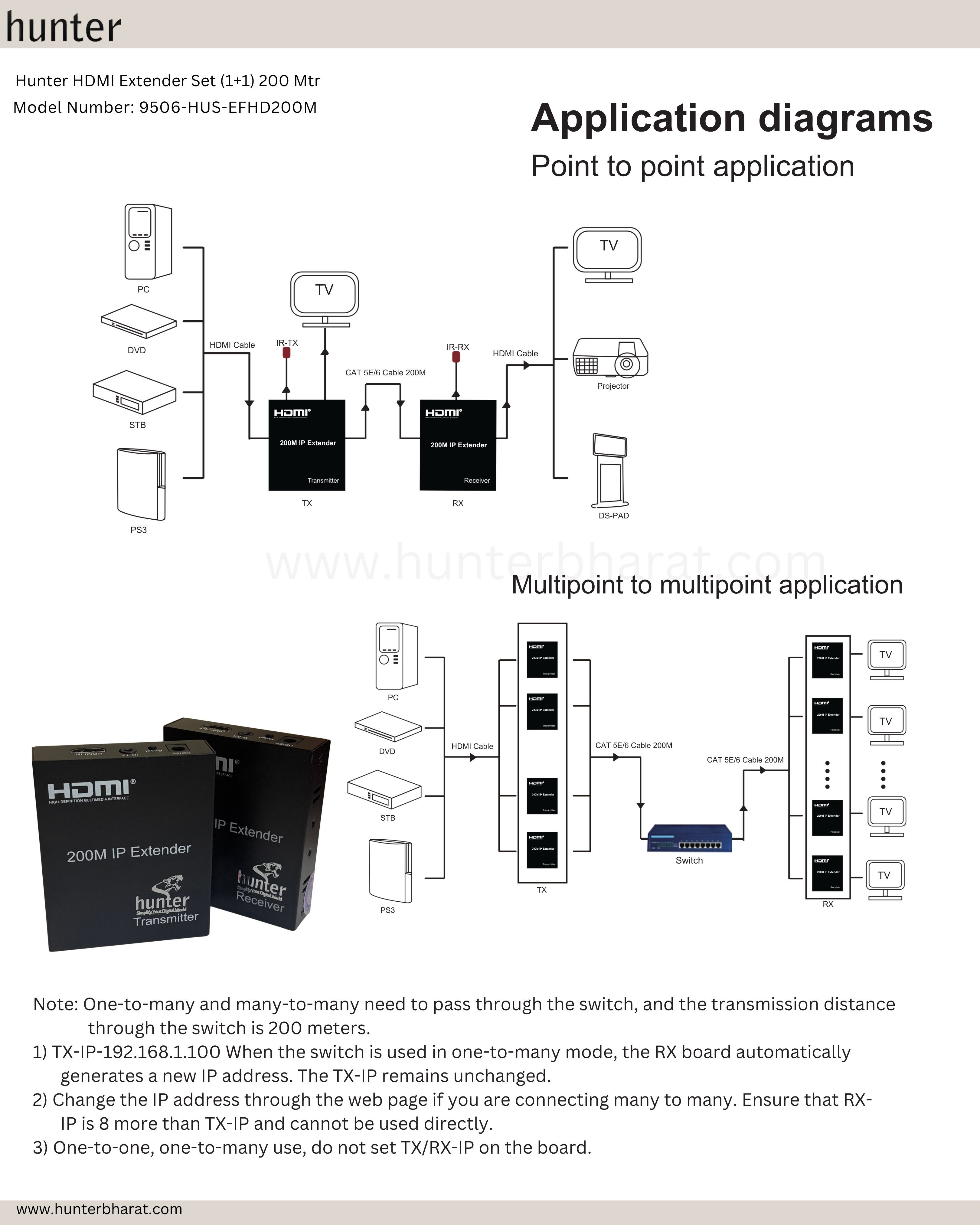

| Distribution Modes | One-to-One, One-to-Many, Many-to-Many, Cascade |
| IR Support | Yes |
| Power Supply | DC 5V / 1A |
| Current Consumption | TX 500mA / RX 500mA |
| Operating Temperature | 0°C to +45°C |
| Dimensions | 93 × 79 × 21 mm |
| Weight | 228g (TX), 228g (RX) |
