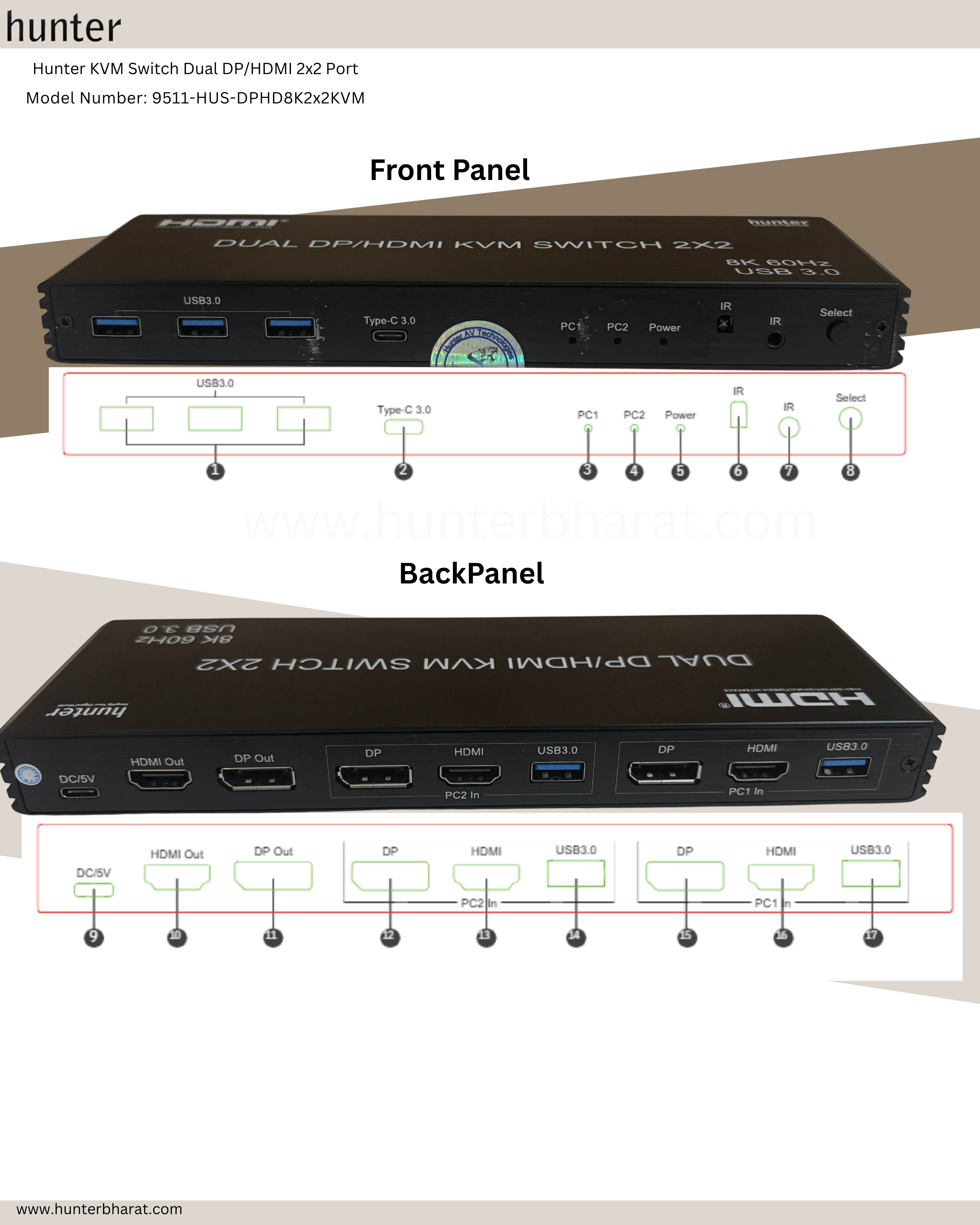

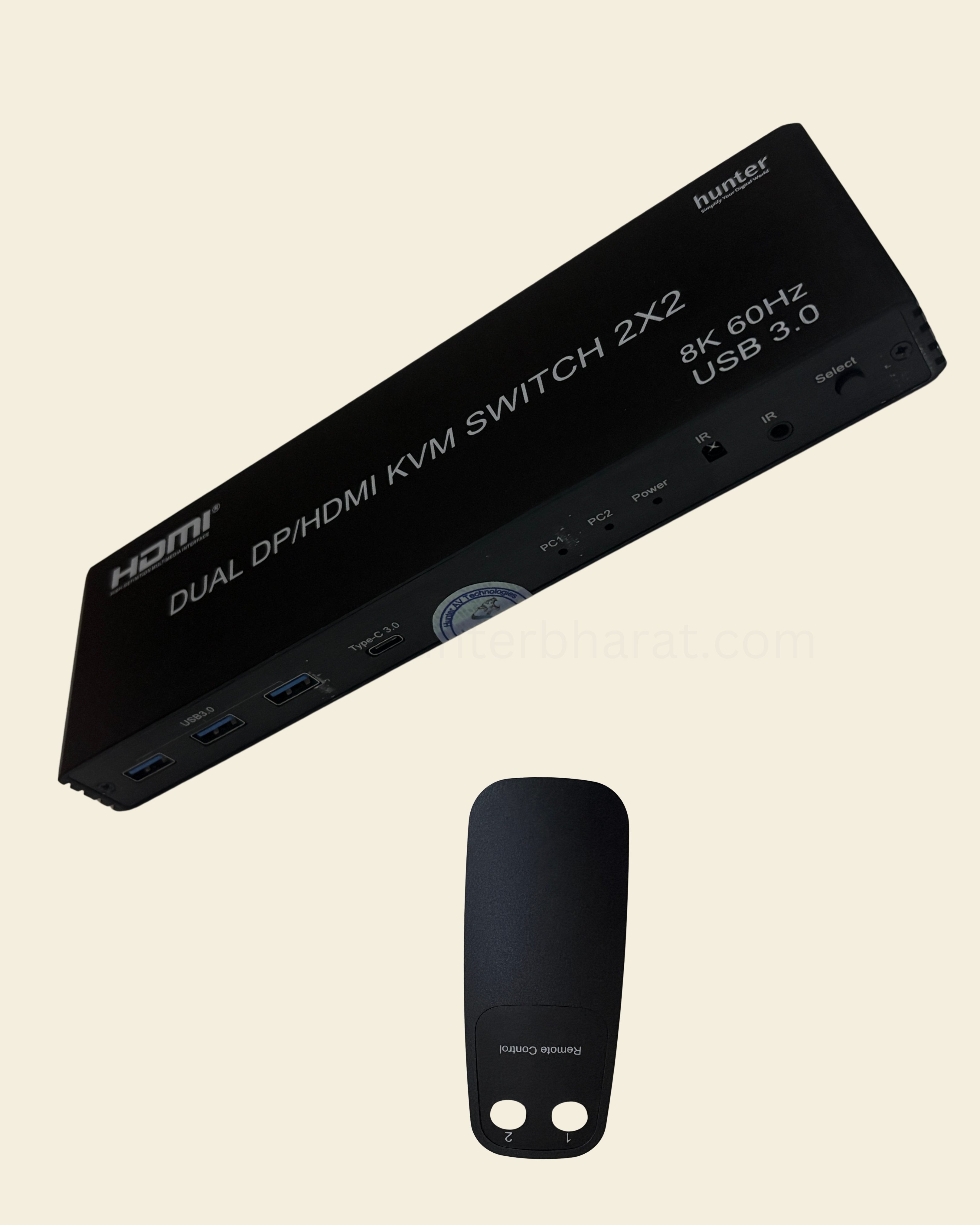

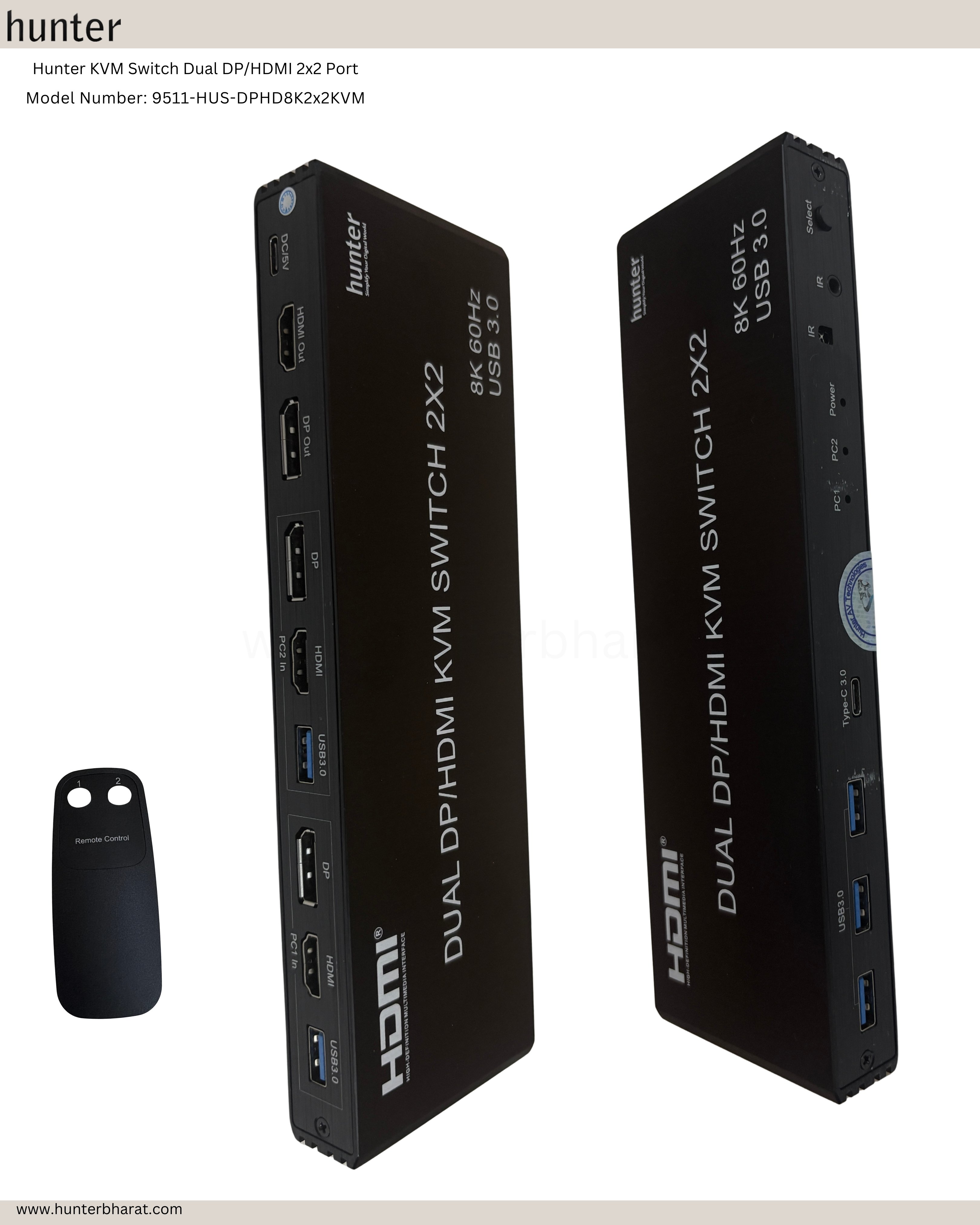

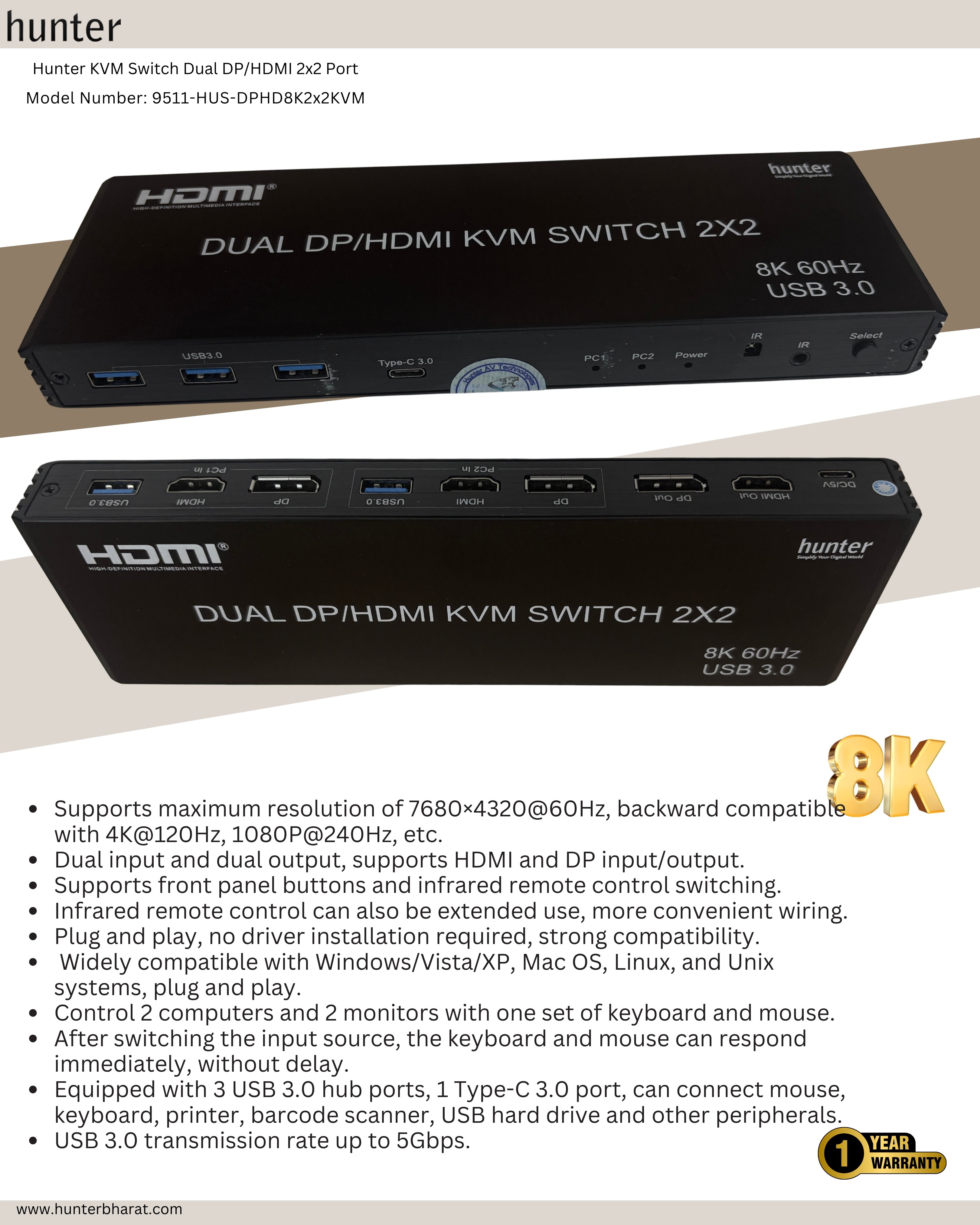

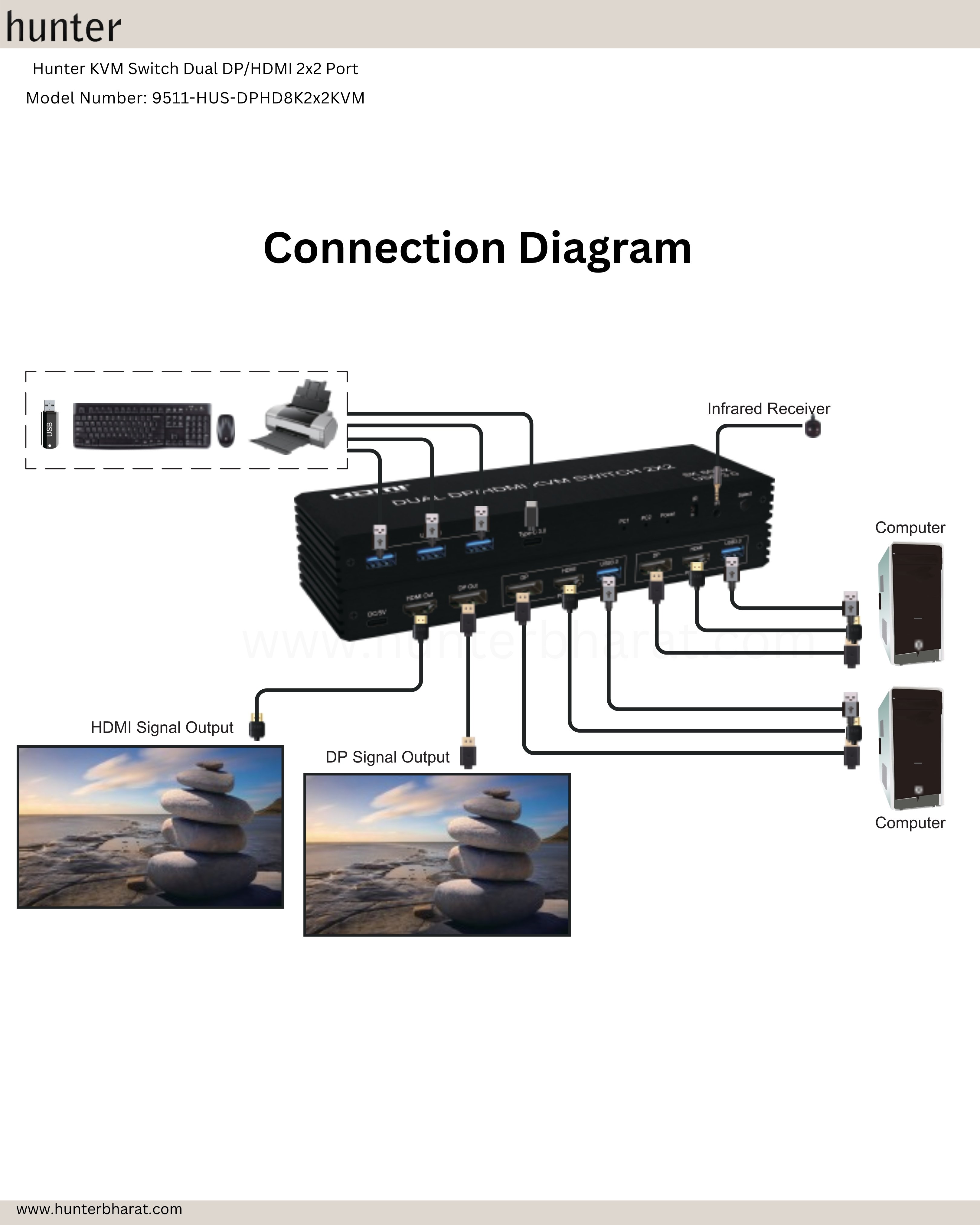

9511-HUS-DPHD8K2x2KVM is a professional Dual DP/HDMI 2×2 KVM Switch that enables users to control two computers and two displays using a single keyboard and mouse. Supporting resolutions up to 8K@60Hz, along with 4K@120Hz and 1080P@240Hz, it is ideal for video editing, graphic design, gaming, and mission-critical workstation environments. Equipped with 48Gbps bandwidth, 3 USB 3.0 ports, 1 USB Type-C 3.0 port, and support for both HDMI and DisplayPort connections, it delivers exceptional performance and flexibility. Users can switch between systems instantly using the front panel button or included IR remote control, while plug-and-play operation ensures quick deployment without driver installation.
Product Code: 9511
Model: 9511-HUS-DPHD8K2x2KVM
The Hunter 9511-HUS-DPHD8K2x2KVM is a high-performance Dual Display KVM Switch designed to control two computers using a single keyboard, mouse, and dual-monitor setup. Supporting both DisplayPort and HDMI connectivity, this advanced KVM switch delivers stunning 8K@60Hz resolution, making it ideal for professional workstations, video editing, content creation, CAD/CAM design, gaming, financial trading, and control room environments.
With support for 48Gbps bandwidth, USB 3.0 peripheral sharing, Type-C connectivity, and instant switching via front panel buttons or IR remote control, the switch enables seamless management of multiple systems without compromising performance.
Control 2 computers and 2 monitors using a single keyboard and mouse setup.
Supports resolutions up to 7680 × 4320 @ 60Hz, with backward compatibility for:
Supports both:
Offering maximum flexibility for modern workstation environments.
Ensures smooth transmission of high-resolution video with no compression or lag.
Includes:
For connecting:
USB 3.0 and Type-C ports support transfer speeds up to 5Gbps.
Switch between PCs using:
After switching between computers, keyboard and mouse response remains immediate without noticeable delay.
Supports:
No drivers or software installation required.
| Parameter | Specification |
|---|---|
| Product Code | 9511 |
| Model | HUS-DPHD8K2x2KVM |
| KVM Type | Dual DP/HDMI 2×2 KVM Switch |
| Controlled Computers | 2 |
| Displays Supported | 2 |
| Maximum Resolution | 7680×4320 @ 60Hz |
| HDMI Support | Yes |
| DisplayPort Support | Yes |
| Maximum Bandwidth | 48Gbps |
| USB Ports | 3 × USB 3.0 |
| Type-C Port | 1 × USB Type-C 3.0 |
| USB Speed | Up to 5Gbps |
| Switching Methods | Front Panel Button, IR Remote |
| Operating Temperature | 0°C to +45°C |
| Humidity | 5%–90% RH |
| Power Supply | DC 5V / 1A |
| Dimensions | 226 × 71 × 25 mm |
| Weight | 360g |
