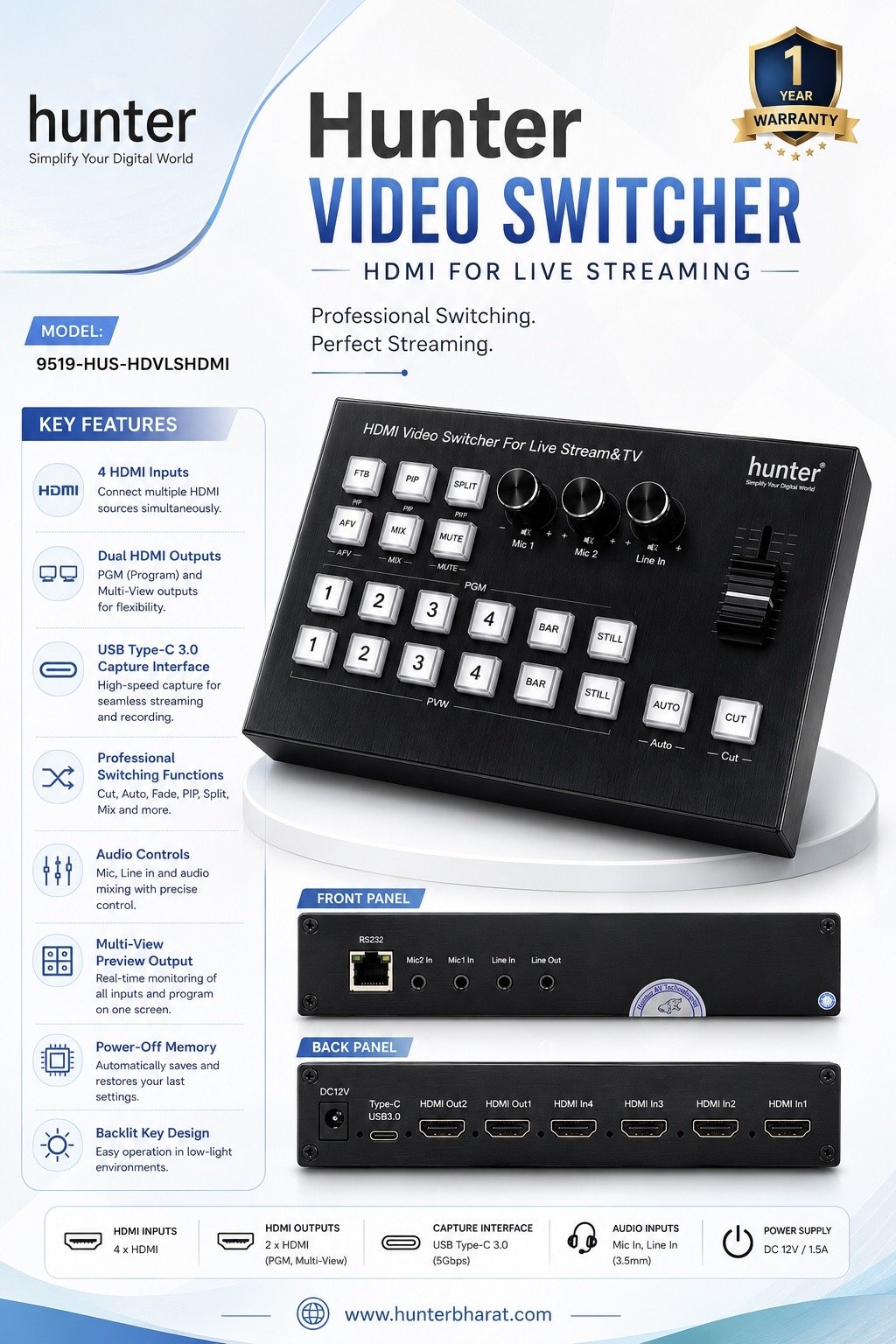

9519-HUS-HDVLSHDMI is a compact 4-channel HDMI live streaming video switcher featuring 4 HDMI inputs, 2 HDMI outputs, and a USB Type-C 3.0 capture interface for live production workflows. Supporting 1080P@60Hzvideo, embedded HDMI audio, MIC and Line-In audio mixing, and HDMI output embedding, it provides professional switching functions including CUT, AUTO, PIP, SPLIT, STILL, FTB, and AFV. The multi-view HDMI output displays channel information, audio status, and resolution details for efficient monitoring. Designed for content creators, education, worship streaming, interviews, presentations, and event production, it offers reliable operation in a compact desktop format.

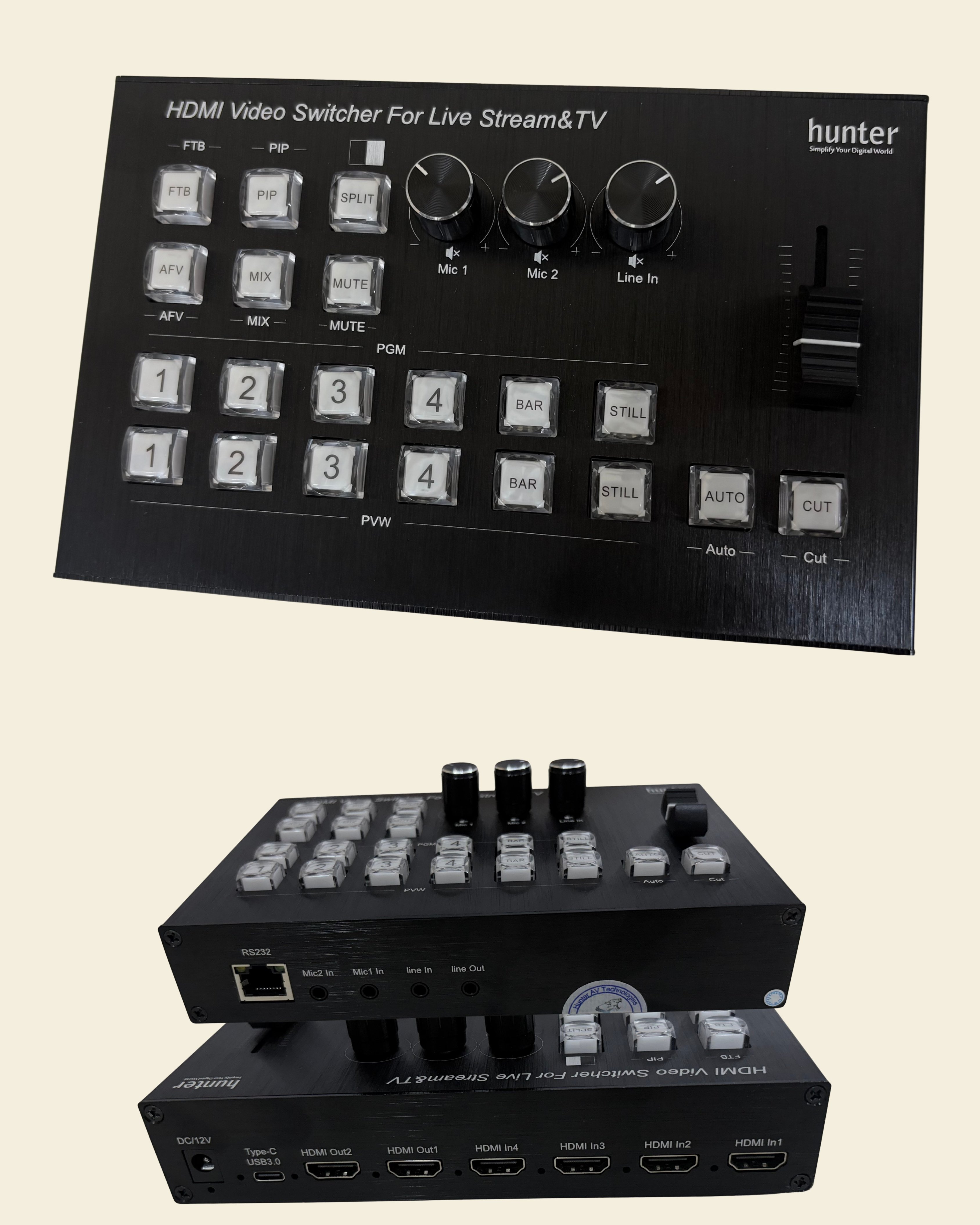

The Hunter 9519-HUS-HDVLSHDMI is a compact HDMI video switcher designed for live streaming, content creation, presentations, educational applications, and event production. Featuring 4 HDMI inputs, 2 HDMI outputs, and a USB Type-C 3.0 capture interface, the switcher enables seamless switching between multiple HDMI sources while providing real-time audio mixing and live streaming capabilities.
Supporting 1080P@60Hz input and output resolution, HDCP 1.4 compliance, embedded HDMI audio, external analog audio mixing, and professional transition effects, it provides an affordable and efficient live production solution for broadcasters, educators, houses of worship, and streaming creators.
Supports:
Provides:
Output resolution:
Features:
Supports:
Mixed audio can be embedded into HDMI output signals.
Includes:
Front-panel rotary controls for:
Mute and audio mixing functions are also supported.
HDMI OUT 1 provides:
Automatically saves settings after power loss.
High-quality buttons with illuminated backlighting for easy operation.

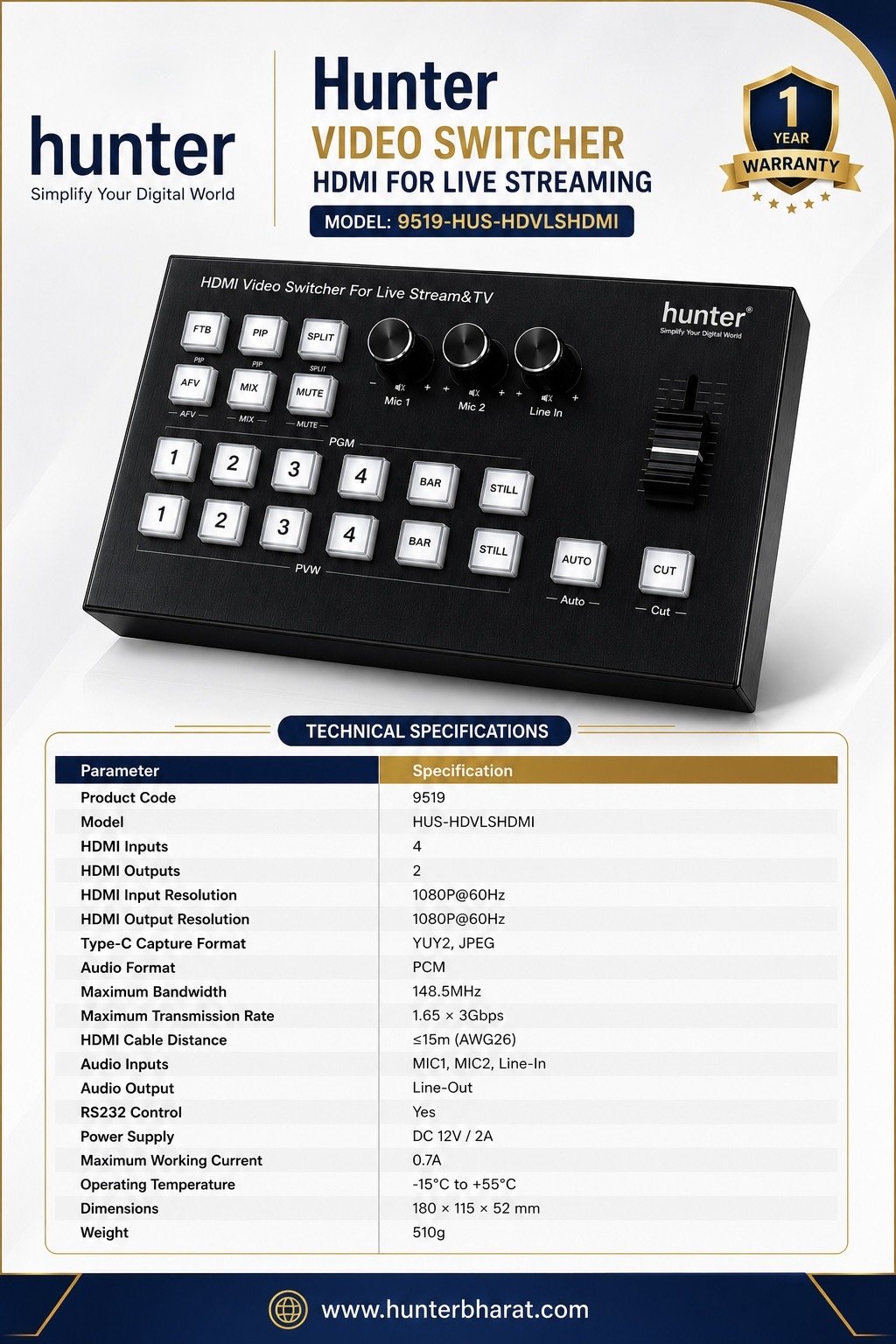

| Parameter | Specification |
|---|---|
| Product Code | 9519 |
| Model | HUS-HDVLSHDMI |
| HDMI Inputs | 4 |
| HDMI Outputs | 2 |
| HDMI Input Resolution | 1080P@60Hz |
| HDMI Output Resolution | 1080P@60Hz |
| Type-C Capture Format | YUY2, JPEG |
| Audio Format | PCM |
| Maximum Bandwidth | 148.5MHz |
| Maximum Transmission Rate | 1.65 × 3Gbps |
| HDMI Cable Distance | ≤15m (AWG26) |
| Audio Inputs | MIC1, MIC2, Line-In |
| Audio Output | Line-Out |
| RS232 Control | Yes |
| Power Supply | DC 12V / 2A |
| Maximum Working Current | 0.7A |
| Operating Temperature | -15°C to +55°C |
| Dimensions | 180 × 115 × 52 mm |
| Weight | 510g |
