9510-HUSHD4K301x10SP is a professional 1×10 HDMI Splitter that distributes a single HDMI source to ten displays simultaneously while supporting resolutions up to 4K@30Hz. Featuring HDMI 1.4b, HDCP 1.4, 3D video support, and 8/10/12-bit Deep Color, it delivers reliable signal distribution for commercial AV installations. Built-in EDID management provides multiple compatibility modes, while the integrated IR extension interface supports remote control functionality when used with compatible HDMI repeaters. The splitter also includes an RS232 upgrade port and signal regeneration capability for long HDMI cable runs, making it suitable for conference rooms, digital signage, classrooms, showrooms, and control room applications.
The Hunter 9510-HUSHD4K301x10SP HDMI Splitter is a professional 1×10 HDMI distribution amplifier designed to distribute a single HDMI source to up to ten HDMI displays simultaneously. Supporting resolutions up to 3840×2160@30Hz, the splitter delivers reliable UHD video distribution for digital signage, showrooms, conference rooms, control rooms, classrooms, retail displays, and commercial AV installations.
The unit features EDID management, HDCP 1.4 compliance, 3D video support, and IR extension capability when used with compatible HDMI repeaters. Built in a durable rack-mountable metal chassis, it ensures stable signal regeneration and reliable performance across multiple display endpoints.
Distribute a single HDMI source simultaneously to ten HDMI displays, projectors, or monitors.
Supports video resolutions up to:
Supports:
Ensures compatibility with a wide range of HDMI source and display devices.
Built-in EDID management with multiple EDID modes for improved compatibility across different display environments.
Integrated IR TX extension port supports remote control extension when used with compatible HDMI repeaters featuring IR-RX functionality.
Can be installed at the end of long HDMI cable runs to help regenerate and distribute HDMI signals.
Supports CEC functionality on Output 1.
Includes RS232 interface for online firmware upgrades.

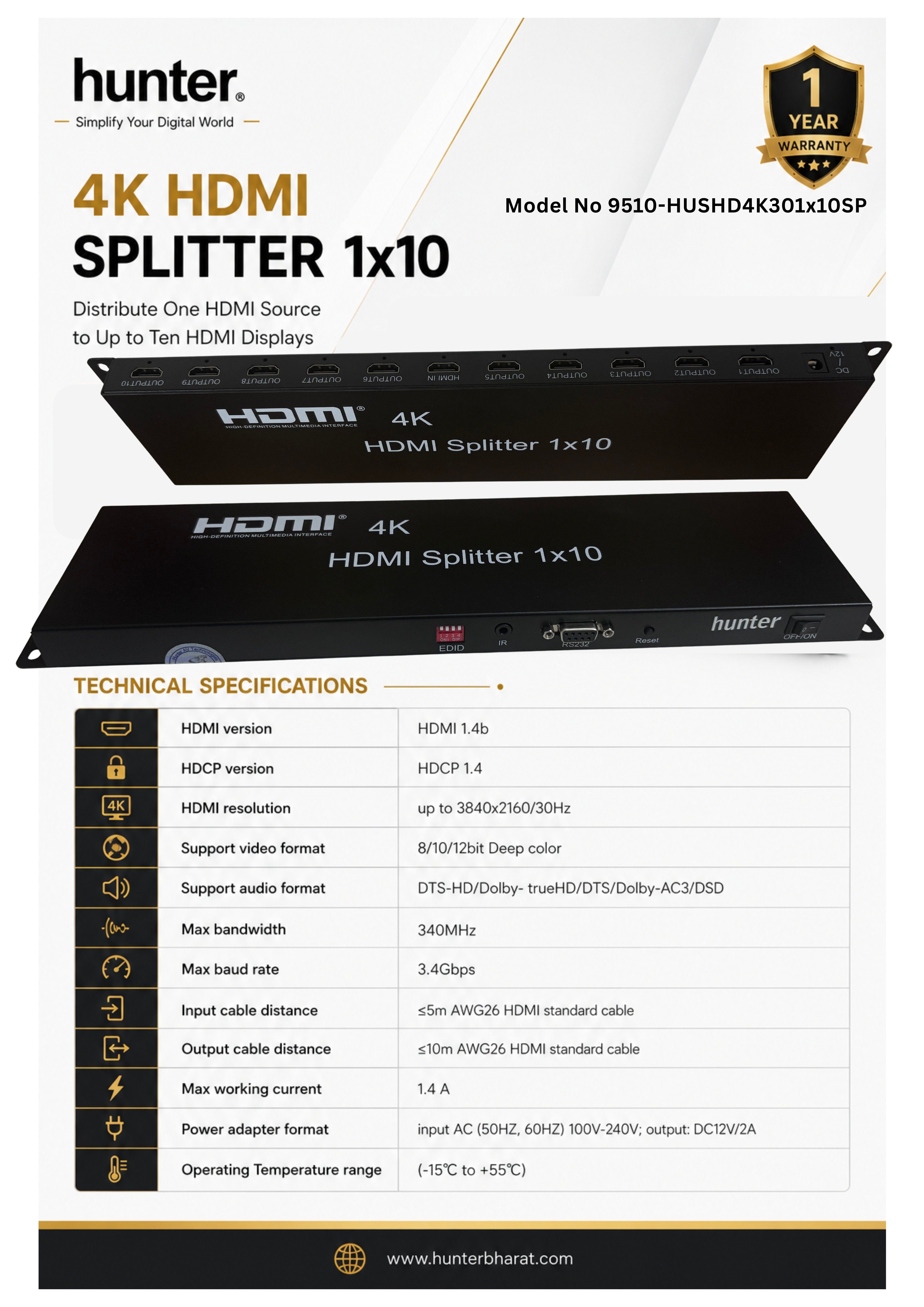

| Parameter | Specification |
|---|---|
| Product Code | 9510 |
| Model | HUSHD4K301x10SP |
| HDMI Inputs | 1 |
| HDMI Outputs | 10 |
| HDMI Version | HDMI 1.4b |
| HDCP Version | HDCP 1.4 |
| Maximum Resolution | 3840×2160 @ 30Hz |
| Video Support | 3D, 8/10/12-bit Deep Color |
| Audio Formats | DTS-HD, Dolby TrueHD, DTS, Dolby AC3, DSD |
| Maximum Bandwidth | 340MHz |
| Maximum Data Rate | 3.4Gbps |
| Input Cable Distance | ≤5m AWG26 HDMI Cable |
| Output Cable Distance | ≤10m AWG26 HDMI Cable |
| EDID Management | Yes |
| IR Extension | Yes |
| RS232 Upgrade Port | Yes |
| Power Supply | DC 12V / 2A |
| Maximum Current | 1.4A |
| Operating Temperature | -15°C to +55°C |
| Dimensions | 375 × 89 × 22 mm |
| Weight | 780g |
